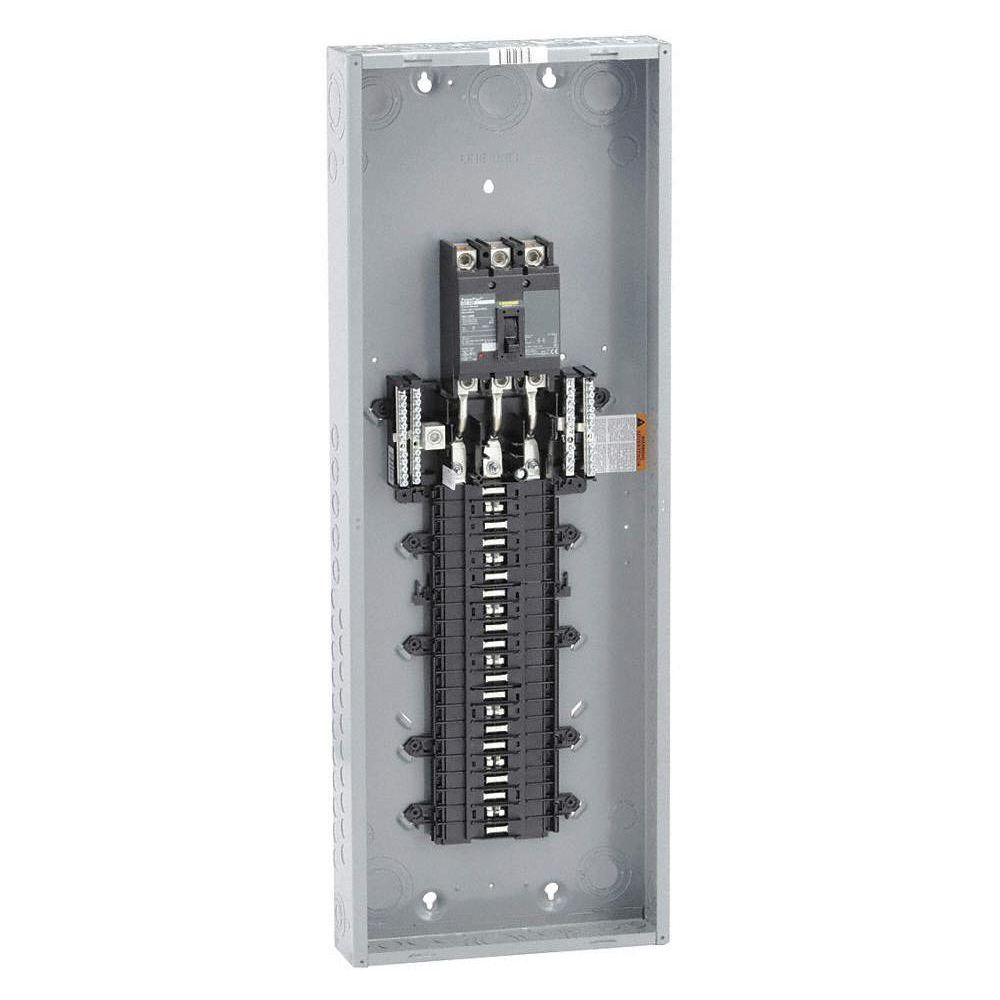

Load Center, Main Circuit Breaker, Convertible,200 Amps,208Y/120VAC, 240/120VAC Delta, 240VAC Delta

Item Number 926458-5
Scanner Description Load Center,Cb,200A,208Y/
Weight 26.8 lb
Brand SQUARE D
Pkg Qty: 1

Add to List

Technical Specifications

Aluminum Wire (AWG/kcmil) 4 to 300   Mains Convertible
Amperage - Electrical Supplies 200   Max. No. of 1-Pole Circuits 42
Amps 200   Max. No. of Tandem Breakers 0
Brand SQUARE D   NEMA Rating 1
Bus Shielded, One Piece   Number of Spaces 42
Bus Material Shielded Tin Plated Copper   Pack Quantity 1
Circuit Breaker Type QO   Phase 3
Copper (AWG/kcmil) 4 to 300   Recommended Flush Cover 3XB93
Depth 3-3/4 in.   Recommended Ground Bar Kit 1D370
Enclosure Indoor   Recommended Surface Cover 3XB94
Enclosure Material Steel   Series QO342
Enclosure NEMA Rating 1   Short Circuit Current Rating 25kA
Flush Cover 3XB93   Special Features Top Or Bottom Feed
Ground Bar Kit 1D370   Standards UL Listed, RoHS Compliant, CE Marked
Height 39-1/2 in.   Surface Cover 3XB94
Item Load Center   Type Main Circuit Breaker
Main Circuit Breaker Factory Installed   Voltage (V) 208Y/120VAC, 240/120VAC Delta, 240VAC Delta
Main Circuit Breaker or Main Lug Main Circuit Breaker, Convertible   Width 14-1/4 in.

Product Description

  • Shipping Weight 26.8 lbs.
Country of Origin USA Country of Origin is subject to change.

Item Barcode

9264585
  Name Item Description
Grainger Dropship Grainger Dropship 3XB91
UNSPSC CODES UNSPSC CODES 39121101
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Load Center, CB,200A,208Y/
