SQUARE D

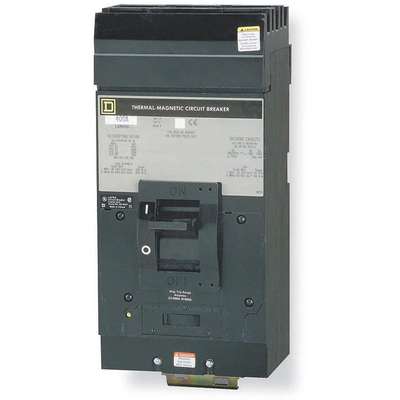

Square D Circuit Breaker, 200 Amps, Number of Poles: 3, 600VAC AC Voltage Rating

Hover over image to magnify
Circuit Breaker,200A,3P,600VAC,
PI_Asset_1984463
PI_Asset_1988518
PI_Asset_1991601
Circuit Breaker,200A,3P,600VAC,
PI_Asset_1984463
PI_Asset_1988518
PI_Asset_1991601

#926458-1 | Pkg Qty: 1

$6,140.70 pkg | $6,140.70 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
AC Voltage Rating
600VAC
Length
11 in.
Air @ 120 VAC
Not Rated
Low Amp Trip Setting
1000 A
Air @ 125 VDC
10kA
Maximum Air Rating
42kA at 120/240VAC
Air @ 240 VAC
42kA
Maximum DC Voltage
250
Air @ 277 VAC
Not Rated
Maximum Wire Size
250 MCM, 600 MCM
Air @ 48 VDC
Not Rated
Mfr. Part Number
LA36200
Air @ 480 VAC
30kA
Minimum Wire Size
250 MCM, 600 MCM
Air @ 600 VAC
22kA
Mounting
Plug In Panelboard
Air @ 65 VDC
Not Rated
Number of Poles
3
Amperage
200 A
Package Quantity
1
Amps
200 A
Panelboard Mounting
Plug-In
Brand
SQUARE D
Phase
Three
Circuit Breaker Type
Standard
Phase Connection
ABC
DC Voltage Rating
250VDC
Series
LA
Depth
5.84 in.
Shipping Weight
18.3 lb.
For Use With
I Line Panelboards
Terminal Connection
Lug
Frame Size
400A/LA
Trip Type
Thermal Magnetic
Height
11 in.
Type
Panelboard Mount
High Amp Trip Setting
2000 A
Voltage
600VAC
Instantaneous Trip
Instantaneous
Width
6 in.
Item
Molded Case Circuit Breaker
General
AIR @ 125VDC
10kA
Circuit Breaker Actuator
Toggle
AIR @ 240VAC
42kA
Circuit Breaker Mounting Style
I-Line
AIR @ 480VAC
30.0kA
Standards
CSA Certified
AIR @ 600VAC
22kA

Product Description

These Square D molded case circuit breakers plug into I-line panelboards to interrupt excessive current flows and protect devices from electrical damage. They are rated up to 125A and 347VAC/250VDC. They're used in control panels, OEM, electrical distribution equipment, and other industrial and commercial applications. Their current-carrying parts, mechanisms, and trip devices are contained in a molded case.
