WESTWARD

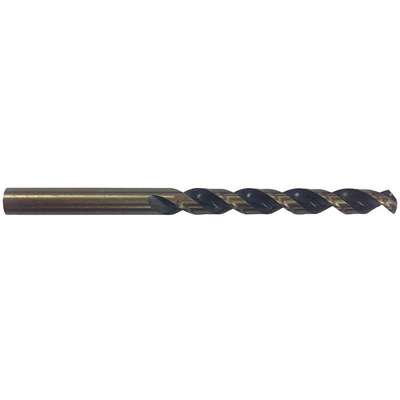

15/64", High Speed Steel, Jobber Drill Bit, 3-7/8" Overall Length, Black/Gold Drill Bit Finish

Hover over image to magnify
Jobber Drill Bit,Hss,Black/
Jobber Drill Bit,Hss,Black/
15/64", High Speed Steel, Jobber Drill Bit, 3-7/8" Overall Length, Black/Gold Drill Bit Finish Video
15/64", High Speed Steel, Jobber Drill Bit, 3-7/8" Overall Length, Black/Gold Drill Bit Finish Video

#926416-9 | Pkg Qty: 1

$4.77 pkg | $4.77 ea

Technical Specifications

Key Specifications
Brand
WESTWARD
Item
Jobber Length Drill Bit
Coolant Through
Non-Coolant Through
Jobber Length Basic Material
High Speed Steel
Cutting Direction
Right
Maximum Drilling Depth
2-5/8 in.
Cutting Direction
Right Hand
Mfr. Part Number
5UDD8
Decimal Equivalent
0.2344
Number of Flutes
2
Dimension Type
Fractional Inch
Number of Pieces
1
Drill Bit Dimension Type
Fractional Inch
Overall Length
3-7/8 in.
Drill Bit Finish
Black/Gold
Pack Quantity
1
Drill Bit Material
High Speed Steel
Point Angle
135 deg.
Drill Bit Point Angle
135 deg.
Point Type
Split Point
Drill Bit Size
15/64 in.
Shank Diameter
7/32 in.
Finish
Black/Gold
Shank Type
Straight
Flute Length
2-5/8 in.
Shipping Weight
.45 lb.
Flute Type
Spiral
Sizes Included
15/64
Grade
Heavy Duty
General
Application
For use on Carbon Steel, Plastic and Cast Iron Materials.
Material - Machining
High Speed Steel
Coolant Fed
Non-Coolant Through
Material Grade - Machining
High Performance
Drill Bit Grouping
Individual
Measurement System
Fractional Inch
Drill Bit Point Type
Split Point
Shank Dia.
7/32 in
Drill Length Class
Jobber Length
Shank Type - Machining
Straight
Finish - Machining
Black & Gold
Standards
Not Rated

Product Description

The black-and-gold finish on these drill bits lubricates the bits and provides some resistance to wear and rust. Parabolic-flute drill bits have wide, deep flutes that improve chip flow and heat dissipation, which means feed rates do not need to be reduced as the drills move deeper into the workpiece. These bits have a straight shank that installs into a drill chuck or similar toolholder.
