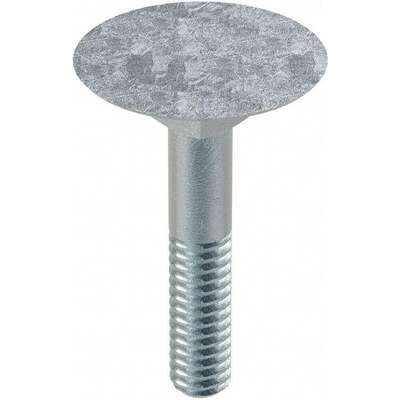

Elevator Bolt: Square, Steel, A307A, Zinc Plated, 1/4"-20 Thread Size, 1 1/2 in lg, Max B100, 50 PK

Hover over image to magnify
Elev. Bolt,Flat,1/4in-20,1-1/
PI_Asset_1110377
Elev. Bolt,Flat,1/4in-20,1-1/
PI_Asset_1110377

#926382-5 | Pkg Qty: 50

$37.00 pkg | $0.74 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Height
0.078 in.
Elevator Bolt Basic Material
Steel
Item
Elevator Bolt
Elevator Bolt Material Grade
Grade A
Material
Low Carbon Steel
Elevator Bolt Type
Elevator Bolt
Meets/Exceeds
ASME B18.5
Fastener Finish
Zinc Plated
Mfr. Part Number
U08361.025.0150
Fastener Head Diameter
0.969 in.
Overall Length
1-1/2 in.
Fastener Industry Standards
ASME B18.5
Package Quantity
50
Fastener Length
1-1/2 in.
Shipping Weight
1.24 lb.
Fastener Thread Direction
Right Hand
System of Measurement
Fractional
Fastener Thread Style
Partially Threaded
Thread Direction
Right Hand
Fastener Thread Type
UNC (Coarse)
Thread Size
1/4"-20
Finish
Zinc Plated
Thread Type
Coarse
Head Type
Flat Head
General
Maximum Head Height
3/32 in
Minimum Neck Height
9/32 in
Maximum Neck Height
7/32 in
Minimum Neck Width
3/16 in
Maximum Neck Width
1/4 in
Neck Height
1/4 in
Minimum Head Height
5/64 in
Neck Width
15/64 in

Product Description

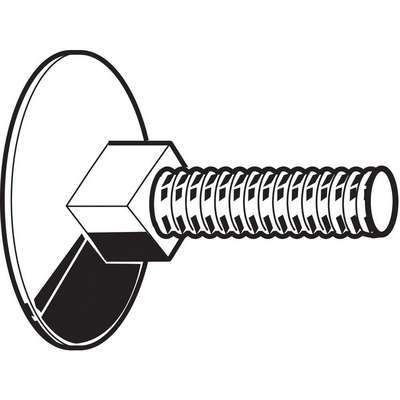

Elevator Bolts are specifically designed to be used where there is little space between the elevator and the wall. The flat, smooth, countersunk head allows minimal extrusion from the wall, while the square neck provides a locking feature. Meet SAE J429 Grade 1 and ASME B18.5 standards.

  •  Tensile strength: 60,000 psi
