GENERAL ELECTRIC

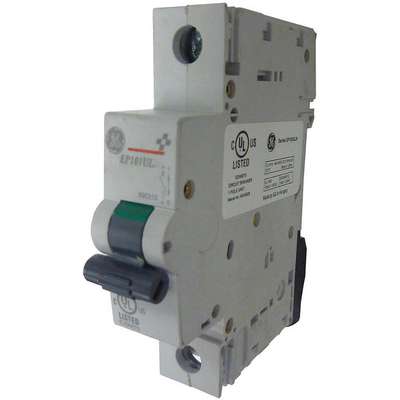

IEC Supplementary Protector, 0.5 Amps, Number of Poles: 1, 277VAC AC Voltage Rating
Hover over image to magnify
#926361-4 | Pkg Qty: 1
Alternate products displayed may not be identical in style or function to original selection.
Technical Specifications
Key Specifications
AC Voltage Rating
277 VAC
Maximum Air Rating
10 kA
Air @ 120 VAC
10kA
Maximum DC Voltage
50
Air @ 125 VDC
10kA
Maximum Wire Size
8 AWG
Air @ 240 VAC
10kA
Mfr. Part Number
ST201M-C0.5
Air @ 277 VAC
10kA
Minimum Wire Size
14 AWG
Air @ 48 VDC
10kA
Mounting
DIN Rail
Air @ 480 VAC
10.0kA
Mounting Type
DIN
Air @ 600 VAC
10kA
Number of Poles
1
Air @ 65 VDC
10kA
Package Quantity
1
Amperage
0.5 A
Phase
1
Brand
GENERAL ELECTRIC
Phase Connection
Any
Circuit Breaker Type
Miniature UL 1077
Series
Ep100Ul
Curve Type
C
Shipping Weight
.3 lb.
DC Voltage Rating
50 VDC
Standards
UL 1077, CSA C22.2 No. 235-1989 (File E151139), VDE, cURus, CE, CEBEC, KEMA EUR
Depth
76 mm
Switch Type
Toggle
High Amp Trip Setting
4-1/4
Terminal Connection
Screw Clamp
Instantaneous Trip
Fixed
Trip Type
Thermal Magnetic
Item
IEC Supplementary Protector
Type
Din Rail Mount
Length
86 mm
Voltage
277 VAC
Low Amp Trip Setting
4-1/4
Width
18 mm
General
AIR @ 120VAC
10kA
AIR @ 600VAC
10kA
AIR @ 125VDC
10kA
AIR @ 65VDC
10kA
AIR @ 240VAC
10kA
Application
Supplemental Protection
AIR @ 277VAC
10kA
Circuit Breaker Actuator
Toggle
AIR @ 480VAC
10.0kA
Circuit Breaker Mounting Style
DIN Rail
AIR @ 48VDC
10kA
Meets UL Type
UL 1077
Product Description
Miniature Circuit Breakers
- Magnetic trip Screw clamp terminals DIN-Rail mounted
- B curve indicates magnetic trip between 3.2 and 4.8 times rated current. C curve indicates magnetic trip between 7 and 10 times rated current. D curve indicates magnetic trip between 10 and 14 times rated current.
Item Barcode
Suppl Protector,.5A,1P,C,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 10K652 | Suppl Protector,. |
 | UNSPSC CODES | 39121601 | |
 | VMRS (ATA) CODES | 053-006-009 | Suppl Protector,. |
