DAYTON

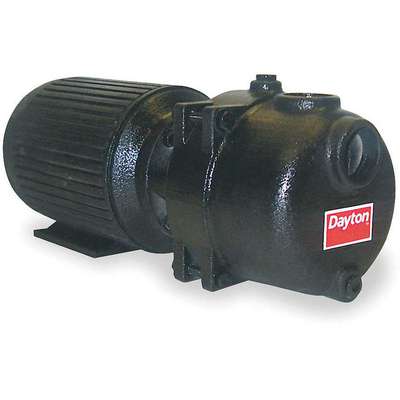

1-Phase Sewage/Trash Centrifugal Pump, 3 HP, 230VAC, 60 ft. Max. Head

Hover over image to magnify
Sewage/Trash Pump,3 Hp
Sewage/Trash Pump,3 Hp

#926312-3 | Pkg Qty: 1

$1,918.58 pkg | $1,918.58 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Agency Compliance
cULus
Maximum Fluid Viscosity
100 SSU
Amps
12.5 A
Maximum Head
60
Bearing Type
Ball
Maximum Specific Gravity
1
Best Efficiency GPM @ Head
55 @ 39 ft.
Mfr. Part Number
4YU37
Brand
DAYTON
Mfr. Warranty Length
1 yr.
Drain Plug
3/8 in. NPT
Minimum GPM @ Head
30 gpm @ 50 ft.
Duty
Continuous
Motor Design
Capacitor-Start
Frame
56J
Motor Enclosure
TEFC
GPM of Water @ 2 Ft. of Head
160
Motor RPM
3450
GPM of Water @ 20 Ft. of Head
110
Motor Type
Capacitor Start
GPM of Water @ 25 Ft. of Head
100
NEMA/IEC Frame
56J
GPM of Water @ 30 Ft. of Head
77
Outlet Size
2 in. NPT
GPM of Water @ 40 Ft. of Head
54
Package Quantity
1
GPM of Water @ 50 Ft. of Head
30
Phase
1
Height
8-23/32 in.
Port Rotation
None
Horsepower
3
Screw Material
Zinc Plated
Housing Material
Cast Iron
Seal Material
Carbon/Ceramic/Buna-N
Hz
60
Seal Type
Mechanical
Impeller Material
Stainless Steel CF8M
Self-Priming
Yes
Impeller Type
Semi-Open
Service Factor
1
Inlet
2
Shaft Material
Stainless Steel
Inlet Pressure
25 psi
Shipping Weight
94 lb.
Item
Sewage/Trash Centrifugal Pump
Voltage
230 VAC
Length
21-17/64 in.
Volute Material
Cast Iron
Maximum Case Pressure
60 psi
Wetted Materials
CI, SS, Carbon,Ceramic,Buna-N
Maximum Diameter Solids
1
Width
8-5/8 in.
General
Application
Process, Liquid Transfer, Irrigation, Clear or Gray Water and Sewage Treatment
Minimum Media Temperature
40 Degrees F
Best Efficiency Head
39 ft
Motor Ambient Temperature (Maximum)
104 Degrees F
Compatible Discharge Pipe Size
2 in
Motor Ambient Temperature (Minimum)
104 Degrees F
Compatible Intake Pipe Size
2 in
Motor Enclosure Type
TEFC
Compatible with Media Type
Sewage
Motor Frame Designation
56J
Discharge Type
NPT
NPSHr
25 psi
Feet of Head (Minimum)
2 ft
Nameplate Voltage
230V AC
Flow Rate @ 20 ft of Head (Maximum)
110 gpm
Priming
Self-Priming
Flow Rate @ 40 ft of Head (Maximum)
54 gpm
Pump Housing Material
Cast Iron
Flow Rate @ 60 ft of Head (Maximum)
0 gpm
Pumping Application
Clear or Gray Water, Irrigation, Liquid Transfer, Sewage Treatment
For Use With
Water and Nonflammable Liquids Compatible with Pump Component Materials
Requires Control Panel
Yes
Impeller Design
Semi-Open
Solid Diameter (Maximum)
1 in
Includes
Strainer
Specific Gravity (Maximum)
1
Intake Type
NPT
Submersible
No
Intake and Discharge Size
2 in , 2 in
Suction Lift (Maximum)
20 ft
Manufacturer Warranty Length
1 yr
Thermal Overload Protection
No
Maximum Feet of Head
60 ft
Wetted Material
Buna-N, Carbon, Ceramic, CI, Stainless Steel
Maximum Media Temperature
160 Degrees F

Product Description

Dayton self-priming (to 20 ft. lift) sewage/trash pumps are close-coupled to continuous duty motors and designed to be installed in a stationary application. Pumps are utilized for industrial and commercial facilities providing support to such applications as process, liquid transfer, irrigation, clear or gray water, and sewage treatment.
