EATON BUSSMANN

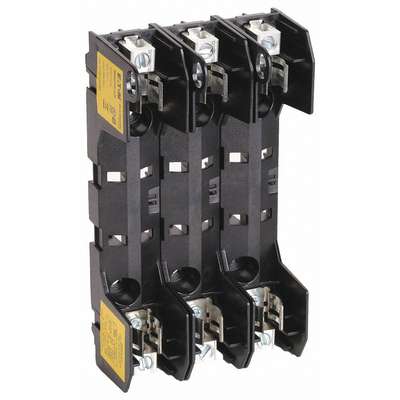

3-Pole Industrial Fuse Block, AC: 600 VAC, DC: 300 VDC, 0 to 30A, Series FRN, FRS, KTN-R, KTS-R, KWN-R

Hover over image to magnify

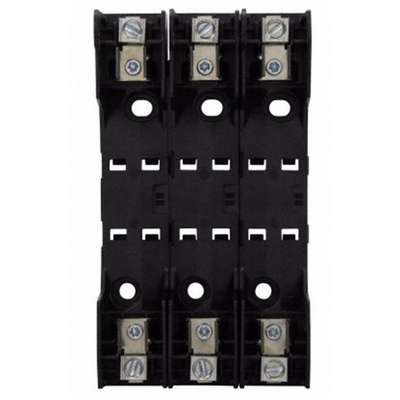

Fuseblock,For600V Lps,Kts-R
PI_Asset_1354244
Fuseblock,For600V Lps,Kts-R
PI_Asset_1354244

#926283 | Pkg Qty: 1

$142.40 pkg | $142.40 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
AC Voltage Rating
600 VAC
Fuse Holder Code
P
Amp Range of Fuse Block or Holder
0 to 30A
Fuse Length
5-1/2 in.
Amperage Range
1-30 A
Fuse Type
Industrial
Amps AC
.5 to 30
Fuse UL Class
R
Blown Fuse Indicator
No
Height
2.3 in.
Body Material
Thermoplastic
Item
Fuse Block
Brand
EATON BUSSMANN
Length
7 in.
Color Family
Black
Maximum Amps
30
Connector Type
Box Lug
Maximum Voltage
600 V
DC Voltage Rating
300 VDC
Mfr. Part Number
RM60030-3CR
Depth
2.3 in.
Mounting Style
Bolt Down/DIN Rail
For Fuse Series
FRN, FRS, KTN-R, KTS-R, LPN, LPS
Number of Poles
3
For Fuse Size
5 in. L x 13/16 in. dia
Pack Quantity
1
Fuse Block Design
Open
Series
Rm600
Fuse Block/Fuse Holder Type
Fuse Block
Shipping Weight
.45 lb.
Fuse Block/Holder AC Voltage Rating
600 VAC
Voltage Rating
600 VAC/300 VDC
Fuse Block/Holder DC Voltage Rating
300 VDC
Width
3-1/2 in.
Fuse Diameter
1-1/16 in.
Wire Range
14 to 2 AWG
Fuse Dimensions
7-7/32 in.L x 2-9/32 in.H x 3-17/32 in.W
Wire Size
14 to 2 AWG
General
Amp Range
0 to 30 A
Fuse Block or Fuse Holder Type
Fuse Block
Compatible Fuse Series
A6D-R, A6K-R, FRS-R, KLSR, KTS-R, KWS-R, LLSRK, LPS-RK, TRS-R
Fuse Block or Holder AC Voltage Rating
600VAC
Fits Fuse Type
Industrial
Fuse Block or Holder DC Voltage Rating
300VDC
For Use With
600V LPS, KTS-R and FRS Fuses, CVR(I)-RH-60030 Covers
Standards
CSA Certified, CE, RoHS, REACH
Fuse Block Style
Rejection
Visual Indication
Nonindicating

Product Description

These fuse blocks are compatible with UL Class RK1 and RK5 fuses. They are rejection-style blocks with clips that fit the modified terminals of Class R fuses to prevent the installation of fuses with a lower voltage rating or interrupting capacity. They're used with RK1 fuses to provide high current limitation for applications where a fast response to overcurrent is required. They're used with Class RK5 fuses to provide moderate current limitation for general use applications.

UL Class and midget fuse blocks accept fuses sized and rated according to UL Class or midget specifications. They have an open top for access to fuses, clips or studs for securing fuses within the block, and terminals for connecting to the circuit. These fuse blocks are either bolted down or mounted on a DIN rail to hold them in place. They're commonly paired with fuse box covers to enclose the fuses and prevent accidental contact. They are nonindicating, so there's no visual signal when a fuse is blown.
