PARKER

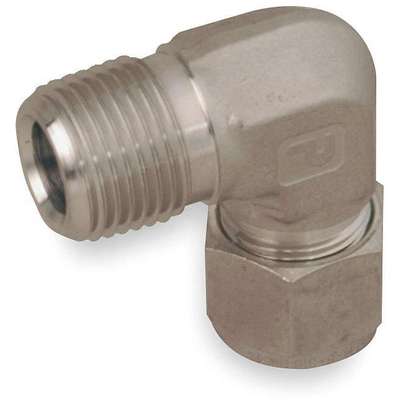

Male Elbow, 90 Degrees: 316 Stainless Steel, Compression x MNPT, For 3/8 in Tube OD, Stainless Steel
Hover over image to magnify
#926194-4Pkg Qty: 1
$83.07 pkg | $83.07 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
PARKER
Package Quantity
1
Item
Male Elbow, 90 Degrees
Shipping Weight
.24 lb.
Mfr. Part Number
6MSEL8N-316
General
Compatible Fitting Brands
A-LOK(R)
Fitting Side B Pipe Size
1/2 in
End Connection Type
Compression
For Tube OD
3/8 in
Fitting Body Material
316 Stainless Steel
For Tube Outside Diameter
3/8 in
Fitting Side A Tube Outer Diameter
3/8 in
Material Grade
316
Product Description
With a compression design that allows for easy assembly this PARKER A-LOK® male elbow provides a leaktight seal for high pressure, vibration, and vacuum in gas or liquid applications. Features a double-ferrule design that allows the front ferrule to create a pressure seal on tube and body. Fitting won’t twist the tubing during installation so that the mechanical integrity of the tubing is preserved. Has a 4:1 safety factor with respect to the working pressure capabilities of the tubing used. Can be used with 304, 316, or 316L stainless steel tubing. For use in refineries, chemical processing, power generation, and instrument lines.
Item Barcode
Elbow, 90,316 SS,A-Lokxm,3/
