ENERPAC

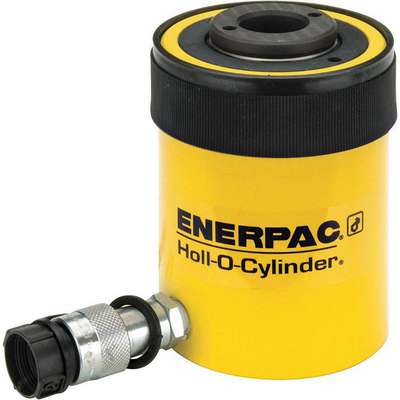

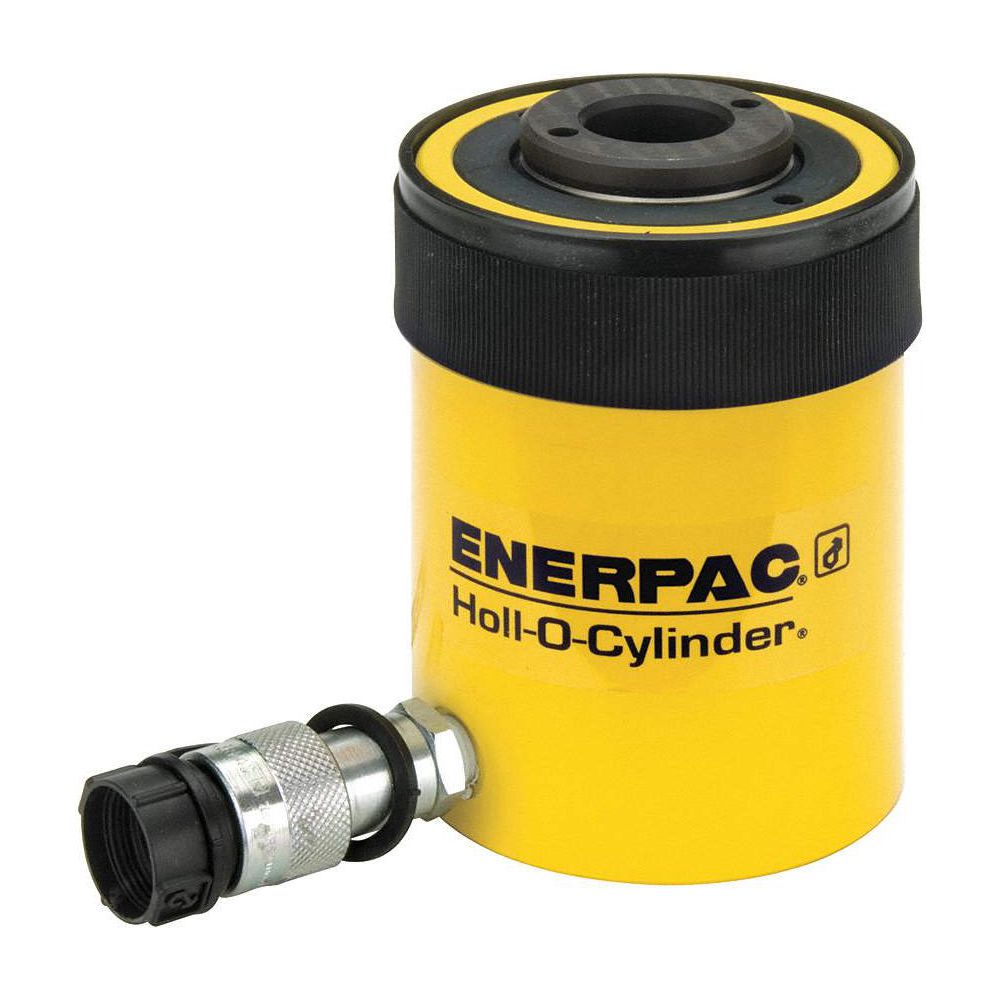

30 tons Single Acting Hollow Steel Hydraulic Cylinder, 2-1/2" Stroke Length

Hover over image to magnify
Cylinder,30 Tons,2-1/2in.
Cylinder,30 Tons,2-1/2in.

#926182-4 | Pkg Qty: 1

$2,074.94 pkg | $2,074.94 ea

Technical Specifications

Key Specifications
Brand
ENERPAC
Pack Quantity
1
Item
General Purpose Hydraulic Ram
Shipping Weight
23.5 lb.
Mfr. Part Number
RCH302
General
Base Bolt Circle Dia.
3.63 in
Max. Push Capacity
30 ton
Base Mounting Thread Size
3/8"-16
Nominal Stroke Length
3 in
Center Hole Dia.
1.31 in
Oil Capacity Push
18.05 cu in
Collar Thread Size
4-1/2"-12
Outside Dia.
4.5 in
Effective Push Area
7.22 sq in
Plunger Dia.
2.5 in
Extended Height
9.53 in
Plunger Thread Size
1-13/16"-16
Includes
Coupler, Dust Cap
Retracted Height
7.03 in
Max. Pressure
10,000 psi
Single Acting/Double Acting
Single Acting

Product Description

General purpose hollow rams attach to a hydraulic pump to lift heavy loads with minimal effort. The hollow piston accepts a threaded rod to allow the ram to be used for push and pull applications. They have a maximum working pressure of 10,000 psi.

Hollow hydraulic rams have a hollow ram, plunger, and piston rod that can be used with a threaded rod for pushing, pulling, tensioning, and testing applications. The rod is threaded through the piston and threaded into or through the workpiece to pull it out or push it into place. Hydraulic rams attach to a hydraulic pump to apply large amounts of force to support or move workpieces.

Item Barcode
9261824
Cylinder,30 Tons,2-1/2in.
  Name Item Description
Grainger Dropship Grainger Dropship 6Z271 Cylinder,30 tons,2-1/2in.
UNSPSC CODES UNSPSC CODES 27121602
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Cylinder,30 tons,2-1/2in.
