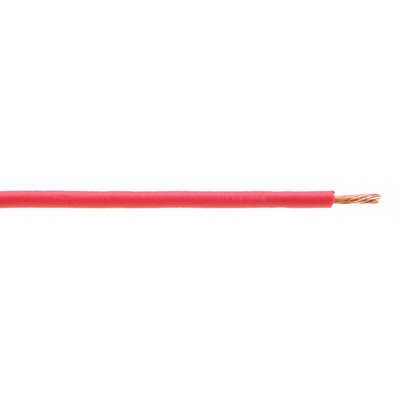

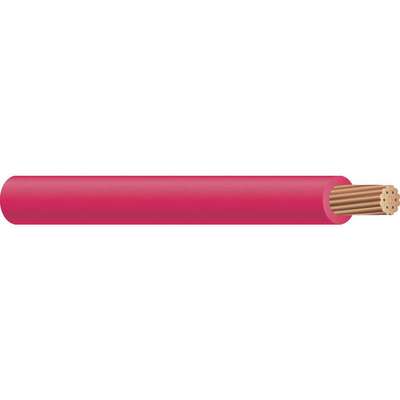

100 ft. PVC Automotive Primary Wire with 1 Conductor(s), 12 AWG Wire Size, 60V Max. Voltage; Red

Item Number 926172-7
Scanner Description Automotv Primary Wire,12 Awg,
Weight 2.65 lb
Brand SOUTHWIRE COMPANY
Pkg Qty: 1
$20.80 pkg | $20.80 ea

Add to List

Technical Specifications

Brand SOUTHWIRE COMPANY   Nominal Outside Diameter 0.145 in.
Cable Type GPT   Number of Conductors 1
Color Red   Pack Quantity 1
Color Family Red   Spool Length 100 ft.
Conductor Copper   Spool/Coil Length (Ft.) 100
Conductor Material Copper   Standards SAE
Description/Special Features Auto   Stranded / Solid Stranded
Gauge/Conductor 12 STRD   Temp. Range Up to 185°F
Insulation Material GPT   Temp. Range (F) 185
Item Primary Wire   Type Auto
Jacket Material Plastic   Wire Color Red
Jacket Type PVC   Wire Size 12 AWG
Max. Amps 25   Wire Size - Wire and Cable 12 AWG
Maximum Voltage 60V   Wire and Cable Item Automotive Primary Wire
Mfg Part Number 55671523

Product Description

  • Shipping Weight 2.65 lbs.
Country of Origin USA Country of Origin is subject to change.

Item Barcode
9261727
  Name Item Description
Grainger Dropship Grainger Dropship 5LXF7
UNSPSC CODES UNSPSC CODES 26121508
VMRS (ATA) CODES VMRS (ATA) CODES 053-007-002 Automotv Primary Wire,
