#926142-8 | Pkg Qty: 1
$36.01 pkg
| $36.01 ea
Technical Specifications
Key Specifications
Brand
CHICAGO-LATROBE
Item
Jobber Length Drill Bit
Coolant Through
Non-Coolant Through
Jobber Length Basic Material
High Speed Steel
Cutting Direction
Right
List Number
150D
Decimal Equivalent
0.5512
Maximum Drilling Depth
2-3/16 in.
Depth x Diameter Ratio
4xD
Mfr. Part Number
45362
Drill Bit Dimension Type
Metric
Number of Flutes
2
Drill Bit Finish
Bright (Uncoated)
Overall Length
160 mm
Drill Bit Material
High Speed Steel
Package Quantity
1
Drill Bit Point Angle
118 deg.
Point Type
Conventional Point
Drill Bit Size
14.00 mm
Series
150D
Drill Point Length
0.1656 mm
Shank Diameter
14 mm
Flute Length
108 mm
Shank Length
52 mm
Flute Type
Spiral
Shank Type
Straight
Grade
General Purpose
Shipping Weight
.35 lb.
Helix Angle
28
Spiral Direction
Right Hand
General
Application
For Non-Ferrous Materials
Material - Machining
High Speed Steel
Coolant Fed
Non-Coolant Through
Material Grade - Machining
General Purpose
Depth:Dia. Ratio
4xD
Measurement System
Metric
Drill Bit Grouping
Individual
Primary Material Application ISO Code
N
Drill Bit Point Type
Conventional Point
Shank Dia.
14 mm
Drill Diameter Tolerance
+0.0000 in /-0.0012 in
Shank Type - Machining
Straight
Drill Length Class
Jobber Length
Standards
Not Rated
Finish - Machining
Bright (Uncoated)
Product Description

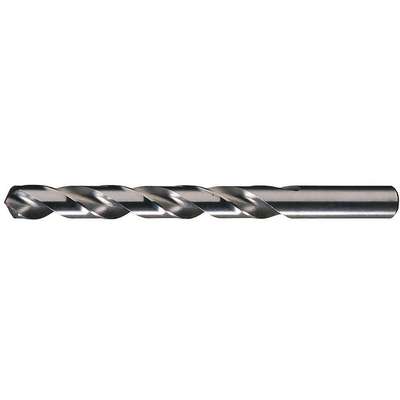

These drill bits come in standard sizes expressed in millimeters. They have a bright finish that is not affected when the bits' cutting edges are resharpened, and they have spiral flutes that evacuate chips as the bits drill into a workpiece. These bits have a straight shank that installs into a drill chuck or similar toolholder.
Documents
Item Barcode
Jobber Drill Bit,Bright,14.
| Name | Item | Description | |
|---|---|---|---|
|
Grainger Dropship | 53FN84 | Jobber Drill Bit,Bright, |
|
UNSPSC CODES | 23241634 | |
|
VMRS (ATA) CODES | 053-006-009 | Jobber Drill Bit,Bright, |
