WIDIA GTD

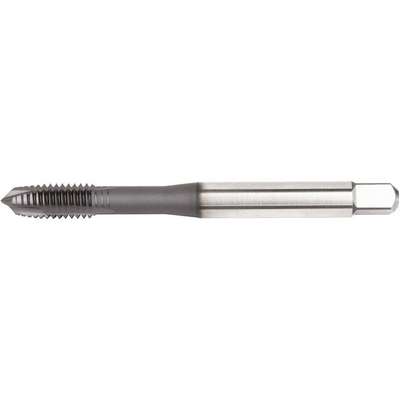

M22-1.50, Tap, Right Hand, Plug, 3 Flutes, High Speed Steel, Bright Tap Finish
#926127 | Pkg Qty: 1
Alternate products displayed may not be identical in style or function to original selection.
Technical Specifications
Key Specifications
Brand
WIDIA GTD
Shipping Weight
.48 lb.
Cutting Direction
Right
Spiral Direction
Neutral
Cutting Direction
Right Hand
Square Size
14-1/2 mm
Dimension Type
Metric
Subgroup | Tap
Spiral Point
Grade
WS39MG
Tap Chamfer
Plug
Insert Material
High Speed Steel
Tap Dimension Type
Metric
Item
Spiral Point Tap
Tap Finish
Bright (Uncoated)
List Number
VT-SPO
Tap Material
HSS-E
Mfr. Part Number
VTSPO6571
Tap Size
M22
Number of Flutes
3
Tap Style
Spiral Point
Number of Pieces
1
Tap Thread Size
M22x1.50
Overall Length
125 mm
Tap Thread Type
Metric Coarse
Pack Quantity
1
Thread Direction
Right Hand
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel, Steel
Thread Length
24 mm
Series
VT-SPO
Thread Type
Metric Fine
Shank Length
63 mm
General
55% Thread Drill Size
20.90 mm
Shank Dia.
18.00 mm
65% Thread Drill Size
20.75 mm
Shank Type - Machining
Straight
75% Thread Drill Size
20.50 mm
Standards
ANSI
Coolant Fed
Non-Coolant Through
Tap Grouping
Individual
Extended Neck
Yes
Thread Limit
6H
Material Grade - Machining
WU40EG
Thread Limit / Class of Fit
6H
Measurement System
Metric
Thread Pitch
1.50 mm
Primary Material Application ISO Code
K, M, N, P
Thread Standard
Metric Fine
Product Description
These taps come in standard sizes expressed in millimeters. The bright finish on these taps provides a smooth, polished surface.
