PIC GAUGES

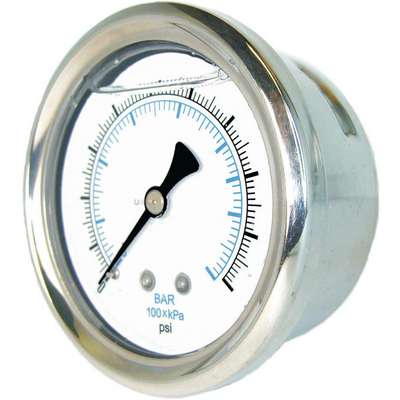

Industrial Pressure Gauge: 0 to 100 psi, 4" Dial, Liquid-Filled, 1/4" NPT Male, 202L

Hover over image to magnify
Pressure Gauge,1/4 In. NPT,4
Pressure Gauge,1/4 In. NPT,4

#926095-8 | Pkg Qty: 1

$64.61 pkg | $64.61 ea
Pressure Range : 0 to 100

Technical Specifications

Key Specifications
Bezel Material
Stainless Steel
Gauge Sensor Material
Copper Alloy
Brand
PIC GAUGES
Gauge Socket Material
Copper Alloy
Calibration Certificate Included
No
Hazardous Location Rating
Not Rated
Gauge Accuracy
±1.0%
Item
Industrial Pressure Gauge
Gauge Application
General Purpose
Liquid Filled
Yes
Gauge Case Color
Silver
Mfr. Part Number
202L-404E
Gauge Case Material
Stainless Steel
Mfr. Warranty Length
1 yr.
Gauge Connection Location
Center Back
Mounting Type
Stem-Mount
Gauge Connection Size
1/4 in.
Non-Sparking
No
Gauge Connection Type
MNPT
Operating Temperature Range
30 deg. F to 160 deg. F
Gauge Filled With
Glycerin
Package Quantity
1
Gauge Lens Material
Polycarbonate
Pressure Range
0 to 100
Gauge Nominal Dial Size
4 in.
Series
202L
Gauge Panel Mountable
No
Shipping Weight
1.57 lb.
Gauge Primary Range Units
psi
Vibration Resistance
Liquid-Filled
General
Accuracy Grade
ASME B40.100 Grade 1A
Nominal Dial Size
4 in
Accuracy Scale
Full Scale
Panel-Mountable
No
Bezel Mounting Type
Fixed
Pointer Material
Aluminum
Blowout Safety Back
No
Pressure Gauge Type
Industrial Pressure Gauge
Case Construction
Stainless Steel
Pressure Range Type
Pressure
Case Depth
1.78 in
Pressure and Vacuum Gauge Type
Pressure Gauge
Case Diameter
4.29 in
Primary Pressure Range
0 to 100
Cleaned for Oxygen Service
No
Primary Scale Minor Graduations
2
Dial Face Material
Aluminum
Primary Scale Units
psi
Dry Dampening Feature
None
Process Connection
1/4 in NPT Male
Field Fillable
No
Process Connection Gender
Male
Freeze Resistant Movement
No
Process Connection Location
Center Back
Gauge Accuracy Grade
Grade 1A - Industrial
Process Connection Size
1/4 in
Gauge Case Liquid
Glycerin
Process Connection Type
NPT
Gauge Wetted Parts
Copper
Removable Bezel
No
Includes Calibration Certificate
No
Scale Type
Dual
Includes Mounting Hardware
No
Secondary Pressure Range
0 to 7
Includes Vent Plug
Yes
Secondary Scale Units
bar
Lens Material - Gauge
Plastic
Sensor Material
Copper Alloy
Liquid-Filled Case
Yes
Standards
ASME
Manufacturer Warranty Length
1 yr

Product Description

Pressure Gauge, General Purpose, 4 in, Basic Gauge Case Material Stainless Steel, Basic Gauge Wetted Parts Copper, 1/4 in, MNPT, Gauge Connection Location Center Back, 0 to 100, psi, +/-2-1-2 Percent, Gauge Panel Mountable No, Liquid Filled Yes, Gauge Primary Range Smallest Graduation 2, Gauge Case Material Stainless Steel, Gauge Case Color Stainless Steel, Calibration Certificate Included No
