#926064-3 | Pkg Qty: 10
$163.80 pkg
| $16.38 ea
Technical Specifications
Key Specifications
Brand
PARKER
Mfr. Part Number
66PLPBH-4-4
Color Family
Silver
Pack Quantity
10
Item
Female Bulkhead
Shipping Weight
.85 lb.
General
Compatible Tube Hardness
95 Shore A
Fitting Side B Pipe Size
1/4 in
End Connection Type
Push-to-Connect, Threaded
For Tube OD
1/4 in
Finish/Coating
Nickel-Plated
For Tube Outside Diameter
1/4 in
Fitting Body Material
Nickel-Plated Brass
Includes Pre-Applied Thread Sealant
Yes
Fitting Pipe Size
1/4 in
Release Type
Button
Fitting Side A Tube Outer Diameter
1/4 in
Product Description

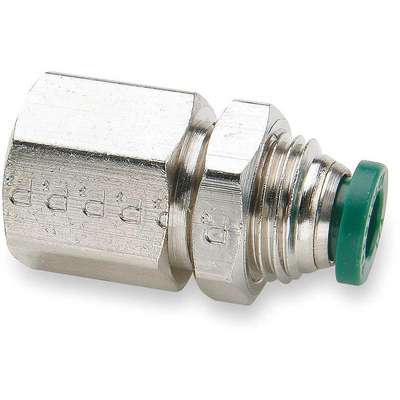

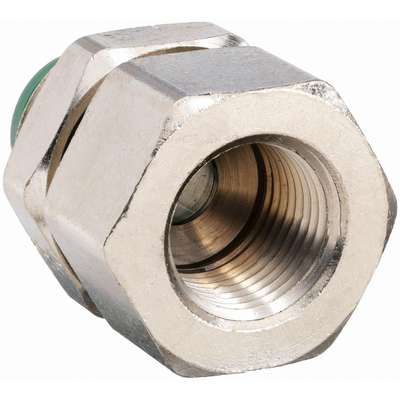

Prestolok™ Nickel-Plated Brass Push-To-Connect Fittings
- Max. operating pressure: 300 psi Max. operating temp.: 0° to 200°F (depending on tubing used) Pkg. qty.: 10 Designed for low-pressure circuits where fast assembly, disassembly, and reassembly are important. Compact, 1-pc., nickel-plated brass fittings are for use with polyethylene, nylon, or polyurethane tubing. Support ferrules or I.D. tube supports only required for thin-walled poly tubing. Vacuum applications depend on temperature and tubing type. WARNING: For use only with air, water, oil, and nonreactive gases. Do not use where accidental separation of tube and fitting could cause injury. Not recommended for continuous-pressure cycling applications.
Item Barcode
Bulkhead,Np Brass,1/4 In.,PK10
| Name | Item | Description | |
|---|---|---|---|
|
Grainger Dropship | 1AJJ4 | Bulkhead,NP Brass,1/4 In. |
|
UNSPSC CODES | 40183110 | |
|
VMRS (ATA) CODES | 053-006-009 | Bulkhead,NP Brass,1/4 In. |
