CHICAGO-LATROBE

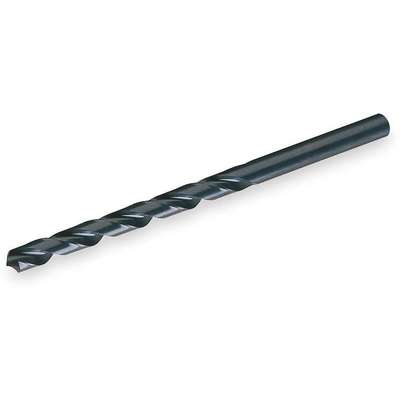

5/32", High Speed Steel, Taper Length Drill Bit, 5-3/8" Overall Length

Hover over image to magnify
Taper Length Drill,5/32,Hss,
Taper Length Drill,5/32,Hss,
5/32", High Speed Steel, Taper Length Drill Bit, 5-3/8" Overall Length Video
5/32", High Speed Steel, Taper Length Drill Bit, 5-3/8" Overall Length Video

#925848-1 | Pkg Qty: 1

$8.87 pkg | $8.87 ea

Technical Specifications

Key Specifications
Brand
CHICAGO-LATROBE
Helix Angle
28 deg.
Coolant Through
No
Item
Taper Length Drill Bit
Cutting Direction
Right
List Number
120
Cutting Direction
Right Hand
Maximum Drilling Depth
5/8 in.
Decimal Equivalent
0.1563
Mfr. Part Number
49710
Depth x Diameter Ratio
2-3/8 in.
Number of Flutes
2
Drill Bit Dimension Type
Fractional Inch
Number of Pieces
1
Drill Bit Finish
Black Oxide
Overall Length
5-3/8 in.
Drill Bit Material
High Speed Steel
Pack Quantity
1
Drill Bit Point Angle
118 deg.
Point Type
Conventional Point
Drill Bit Size
5/32 in.
Series
120
Drill Point Length
0.0469 in.
Shank Length
2-3/8 in.
Finish
Black Oxide
Shank Type
Straight
Flute Length
3 in.
Shipping Weight
0.03 lb.
Flute Type
Spiral
Spiral Direction
Right Hand
Grade
General Purpose
General
Application
For Deeper Drilling On Alloy And Carbon Steel And Cast Iron
Material - Machining
High Speed Steel
Coolant Fed
Non-Coolant Through
Material Grade - Machining
General Purpose
Depth:Dia. Ratio
4xD
Measurement System
Fractional Inch
Drill Bit Grouping
Individual
Primary Material Application ISO Code
K, P
Drill Bit Point Type
Radial Point
Shank Dia.
9/64 in
Drill Diameter Tolerance
+0.0000 in /-0.0007 in
Shank Type - Machining
Straight
Drill Length Class
Taper Length
Standards
Not Rated
Finish - Machining
Black Oxide

Product Description

These drill bits come in standard sizes expressed in fractional inches. The bits have a black-oxide finish that retains lubricants to improve the bits' wear resistance and chip flow. Black-oxide bits should only be used for drilling ferrous metals. High-speed steel drill bits provide more flexibility and absorb more shock and vibration than cobalt and carbide drill bits, making them suitable for use in manual drilling machines and handheld power tools. They may leave a rough finish on the hole. These bits have spiral flutes that evacuate chips as the bits drill into a workpiece.

Item Barcode
9258481
Taper Length Drill,5/32,Hss,
