SQUARE D

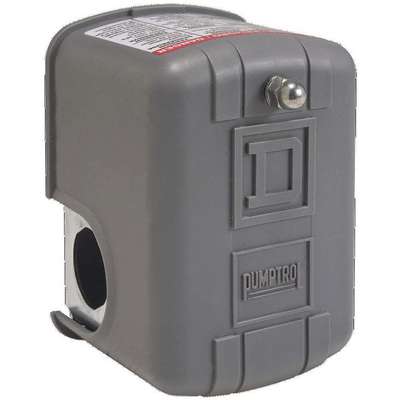

Square D Water Pump Pressure Switch; Range: 5 to 65 psi, Port Type: (1) Port, 1/4" FNPS
Hover over image to magnify
#925844-4 | Pkg Qty: 1
$37.72 pkg | $37.72 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
10 A @ 575 V
Manual Switch Action
None
Action
Standard
Mfr. Part Number
9013FSG2J20U
Actuation Type
Diaphragm
NEMA Rating
1
Amperage
10 A
Number of Ports
1
Brand
SQUARE D
Package Quantity
1
Burst Pressure
220 psi
Phase
Single/Three
Contact Form
DPST
Port Type
1-Port 1/4 in. FNPS
Contact Type
DPST
Pressure Range
5 to 65
DC Contact Rating
1/4 HP @ 115 VDC, 1/4 HP @ 230 VDC
Pressure Switch Action
Standard
Differential
15 to 30 PSI
Pressure Switch Application
Water Pump
Differential Pressure
15 to 30
Pressure Switch Differential
15 to 30 PSI
Enclosure
NEMA 1
Pressure Switch Electrical Contact Form
DPST
Factory On/Off Setting
20/40 psi
Pressure Switch Factory On/Off Setting
20/40 PSI
HP @ 1 Phase - 120 V
2002-01-01
Pressure Switch Port Type
(1) Port, 1/4 in. FNPS
HP @ 1 Phase - 230 V
2
Pressure Switch Range
5 to 65 psi
HP @ 1 Phase - 240 V
2
Pressure Switch Unloader
No
HP @ 3 Phase - 230 V
3
Range
5 to 65 PSI
HP @ 3 Phase - 240 V
3
Series
9013Fsg
HP @ 3 Phase - 460 V
1
Shipping Weight
.85 lb.
HP @ 3 Phase - 480 V
1
Temperature Range
-22 deg. F to 257 deg. F
IP Rating
54
Type
Water Pump
Item
Pressure Switch
Unloader
No
General
Application
Water Pump
HP @ 3 Phase - 460V
1
HP @ 1 Phase - 120V
1 1/2 hp
HP @ 3 Phase - 480V
1 hp
HP @ 1 Phase - 230V
2
Includes
Slip-On Connectors (load side terminals only)
HP @ 1 Phase - 240V
2 hp
Special Features
Load Side Quick Connect Terminals
HP @ 3 Phase - 230V
3
Standards
UL 508, NEC Article 430-84, ANSI /NSF Standard 61, FDA 21CFR.2600, CSA Certified
HP @ 3 Phase - 240V
3 hp
Product Description
This pressure switch is designed for the control of electrically driven water pumps and air compressors. It features a high electrical rating for the direct control of motors in pump and compressor applications.
Expertly Selected Product Pairings
Documents
SQUARE D 9013F Pumptrol Pressure Switch Instruction Card
SQUARE D Pressure Switch 9013 Brochure
SQUARE D Preventive Maintenance and Troubleshooting Class 9013F 9013G
SQUARE D Pressure Switch Brochure
SQUARE D Class 9013 Pressure Switch Catalog
SQUARE D Pressure Switch End of Life Instructions
SQUARE D Water Pump Pressure Switch Product Environmental Profile
