GREENFIELD THREADING

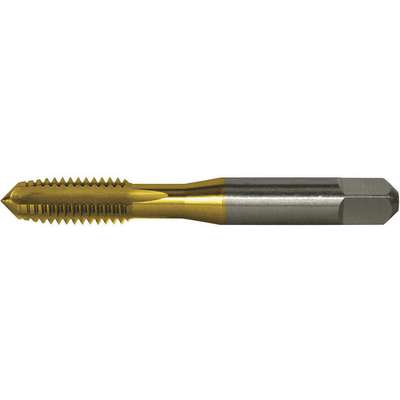

3/4"-16, Tap, Right Hand, Plug, 4 Flutes, High Speed Steel, TiN Tap Finish
Hover over image to magnify
#925831-1 | Pkg Qty: 1
$91.18 pkg | $91.18 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
GREENFIELD THREADING
Shank Length
2-1/4 in. in.
Cutting Direction
Right
Shipping Weight
0.3 lb.
Cutting Direction
Right Hand
Size
3/4 in.
Drill Size
11/16 in.
Spiral Direction
Neutral
Finish
TiN
Square Size
0.442 in.
Flutes
4
Subgroup | Tap
Straight Flute
Item
Straight Flute Tap
Tap Chamfer
Plug
List Number
HTGP-TN
Tap Dimension Type
Inch
Material
High Speed Steel
Tap Finish
TiN
Mfr. Part Number
307471
Tap Material
High Speed Steel
Number of Flutes
4
Tap Size
3/4 in.
Number of Pieces
1
Tap Style
Straight Flute (Hand)
Overall Length
4-1/4 in.
Tap Thread Size
3/4 in.-16
Pack Quantity
1
Tap Thread Type
UNF
Pitch
16
Thread Direction
Right Hand
Pitch Diameter Limits
H3
Thread Length
2 in.
Primary Material Application
Cast Iron, Stainless Steel, Steel
Thread Type
UNF
Series
HTGP-TN
Type
Plug
Shank Diameter
37/64 in.
General
55% Thread Drill Size
17.90 mm
Shank Type - Machining
Straight
65% Thread Drill Size
17.70 mm
Standards
USCTI Table 302A
75% Thread Drill Size
17.50 mm
Tap Grouping
Individual
Application
For Alloy Steel, Carbon Steel, Free-Machining Stainless and Aluminum
Tap Length Standard
USCTI
Class of Fit
2B
Tap Shank Standard
USCTI
Extended Neck
Yes
Thread Limit
H3
Measurement System
Fractional Inch
Thread Limit / Class of Fit
H3 / 2B
Primary Material Application ISO Code
K, M, P
Thread Standard
UNF
Shank Dia.
37/64 in
Threads per Inch
16
Product Description
Heavy-Duty HSS Surface-Treated Hand Taps
- GTD taps are for use with steel and stainless steel 30RC, and cast iron OSG taps are for use with aluminum, steel, stainless steel, and cast iron
- For general machine or CNC tapping. Choose TiN Coated for higher tapping speeds and areas where increased tap wear life and improved thread finish are needed. Choose TiCN Coated for high-temperature applications.
Item Barcode
Hand Tap,Plug,3/4"-16 Thread,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 15J606 | Hand Tap, Plug,3/4"-16 |
 | UNSPSC CODES | 23241615 |
