HI-TECH DURAVENT

25 ft. Thermoplastic Rubber Industrial Ducting Hose with 2.9" Bend Radius, Black

Hover over image to magnify
Ducting Hose,3 In. Id,25 Ft. L,
Ducting Hose,3 In. Id,25 Ft. L,

#925731 | Pkg Qty: 1

$141.14 pkg | $141.14 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Bend Radius
2.9 in.
Mfr. Part Number
0337-0300-0001
Brand
HI-TECH DURAVENT
Package Quantity
1
Color Family
Black
Reinforcement Material
Not Reinforced
Hose Inside Diameter
3 in.
Shipping Weight
14.35 lb.
Hose Length
25 ft.
Temperature Range
-40 deg. F to 250 deg. F
Item
Industrial Duct Hose
Tube Material
TPE
Maximum Working Pressure @ 70 F
7 PSI
Vacuum Rating
28" Hg
General
Chips and Shavings
X
Hose Reinforcement Type
Helix
Compatible Chemicals
Dust, Fumes
Hose Tube Material
TPE
Cutting Oil
X
Liquids
X
Dust
R
Max. Working Pressure @ 70 F
7 psi
For Media Type
Dust, Fumes
Not Recommended Chemicals
Chips & Shavings, Cutting Oil, Liquids, Water
Fumes
R
Temp. Range
-40 Degrees to 250 Degrees F
Hose Reinforcement Material
Not Reinforced
Water
X

Product Description

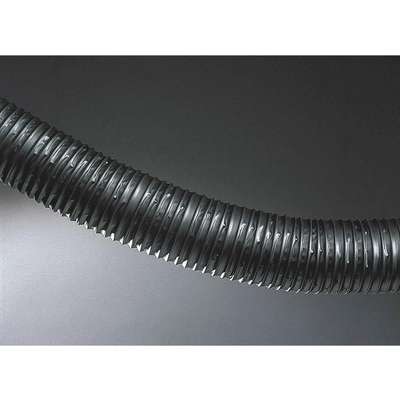

These thermoplastic rubber duct hoses have flexible, thin walls and resist oils and most acids, alkalis, and solvents. They are primarily used for transferring pellets in the plastics-processing industry. These hoses have a smooth interior that helps prevent material from sticking inside the hose, maximizing air flow. They are highly compressible, which saves space when transporting the hose.

These duct hoses are primarily used to blow, vacuum, or exhaust dust. Some types of this duct hose may also be used for moving other materials, such as fumes. The smaller a duct hose's bend radius, the more flexible the hose is. Duct hoses for dust are sometimes known as dust-collection hoses or dust hose.
