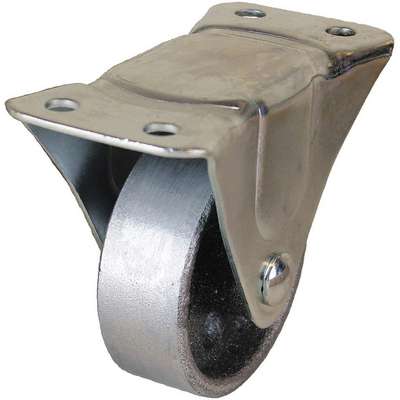

2-1/2" Light-Duty Rigid Plate Caster, 200 lb. Load Rating

2-1/2" Light-Duty Rigid Plate Caster, 200 lb. Load Rating
Rigid Plate Caster,Iron,2.5",
PI_Asset_1355926

#925721-5 | Pkg Qty: 1

$10.70 pkg | $10.70 ea
Item Number 925721-5
Scanner Description Rigid Plate Caster,Iron,2.5",
Inventory Status Drop Ship Item
Weight 1.3 lb
Brand APPROVED SUPPLIER

Technical Specifications

Application
Furniture Dollies, Bakery Racks, Laundry Carts
Includes
Complete Caster
Brand
APPROVED SUPPLIER
Inside Bolt Hole Spacing
1-1/16 in. x 3-1/2 in.
Caster Brake Included
No
Item
Plate Caster
Caster Core Material
Cast Iron
Load Rating
200 lb.
Caster Group
Rigid Caster
Mfr. Part Number
P2R-C025G-P
Caster Load Rating Range
Light Duty
Non-Marking
Yes
Caster Maximum Temperature
800°F
Number of Wheels
1
Caster Plate Hole Pattern
D
Outside Bolt Hole Spacing
1-1/16 in. x 3-1/2 in.
Caster Plate Size
2-1/8 in. x 4-3/8 in.
Overall Height
3-1/4 in.
Caster Swivel Lock Type
No Lock Included
Pack Quantity
1
Caster Temperature Range Available
Yes
Plate Caster Sub-Type
Rigid
Caster Wheel Bearings
Plain
Plate Size
2-1/8 in. x 4-3/8 in.
Caster Wheel Shape
Standard
Standards
ICWM
Caster Wheel/Tread Material
Cast Iron
Wheel Color
Silver
Core Color
Silver
Wheel Color Family
Silver
Durometer
Brinell 145
Wheel Diameter
2-1/2 in.
Frame Finish
Zinc Plated
Wheel Width
1-1/8 in.

Product Description

Light-duty standard plate casters are installed onto the bottom of carts, dollies, business machines, store fixtures, food-service equipment, and other equipment that will be moved manually at moderate speeds. These casters are best suited for applications where they will be transporting relatively light loads along smooth, flat surfaces and won't encounter shock loading, such as in offices, retail stores, schools, and government buildings. Sometimes known as institutional plate casters, these light-duty standard plate casters have Zinc-Plated steel frames.

Item Barcode
9257215
  Name Item Description
Grainger Dropship Grainger Dropship 33H733 Rigid Plate Caster,Iron,
UNSPSC CODES UNSPSC CODES 31162701
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Rigid Plate Caster,Iron,
