Home All Products Hydraulics Hydraulic System Components Maintenance Set Hydraulic Cylinder SKU: 925584-9
ENERPAC

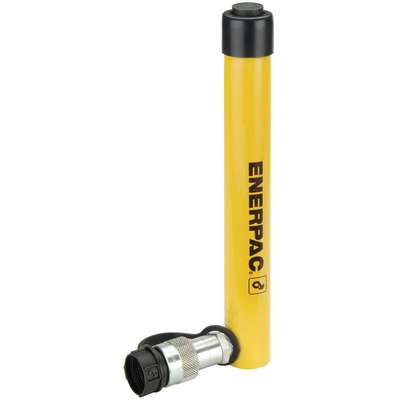

25 tons Single Acting General Purpose Steel Hydraulic Cylinder, 2" Stroke Length

Hover over image to magnify
Cylinder,25 Tons,2in. Stroke L
Cylinder,25 Tons,2in. Stroke L

#925584-9 | Pkg Qty: 1

$938.41 pkg | $938.41 ea

Technical Specifications

Key Specifications
Brand
ENERPAC
Item
Hydraulic Ram
Includes
Coupler, Dust Cap
Pack Quantity
1
General
Base Bolt Circle Dia.
2.31 in
Nominal Stroke Length
2 in
Center Hole Dia.
2 1/4 in
Oil Capacity Push
10.31 cu in
Collar Thread Size
3-5/16"-12
Outside Dia.
3.38 in
Effective Push Area
5.16 sq in
Plunger Dia.
2.25 in
Extended Height
8.5 in
Plunger Thread Size
1-1/2"-16
Max. Pressure
10,000 psi
Retracted Height
6.5 in
Max. Push Capacity
25 ton
Single Acting/Double Acting
Single Acting

Product Description

General purpose rams attach to a hydraulic pump to lift heavy loads with minimal effort. They have a maximum working pressure of 10,000 psi.

Standard hydraulic rams are used in general purpose applications for one-direction lifting and supporting. They are often used with fixtures to support tasks such as crimping, pressing, and punching. They can also be used standalone for lifting heavy objects.

Item Barcode
9255849
Cylinder,25 Tons,2in. Stroke L
  Name Item Description
Grainger Dropship Grainger Dropship 3KD45 Cylinder,25 tons,2in.
UNSPSC CODES UNSPSC CODES 27121602
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Cylinder,25 tons,2in.
