SQUARE D

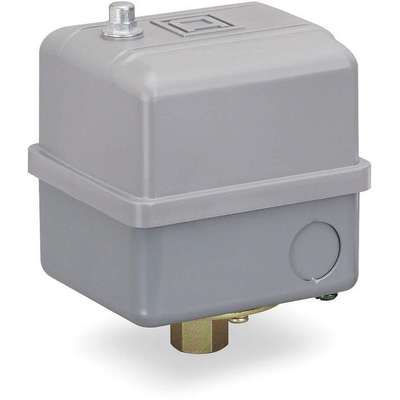

Square D Air Compressor and Water Pump Pressure Switch; Range: 32 to 250 psi, Port Type: (1) Port, 1/4" FNPS
Hover over image to magnify
#925451-4 | Pkg Qty: 1
Alternate products displayed may not be identical in style or function to original selection.
Alternate Products
Technical Specifications
Key Specifications
AC Contact Rating
10 A @ 575 V
Manual Switch Action
Auto/Off/On
Action
Standard
Mfr. Part Number
9013GHG5J61E
Actuation Type
Diaphragm
NEMA Rating
1
Amperage
10 A
Number of Ports
1
Brand
SQUARE D
Package Quantity
1
Burst Pressure
300 psi
Phase
Single/Three
Contact Form
DPST
Port Type
1-Port 1/4 in. FNPS
Contact Type
DPST
Pressure Range
32 to 250
DC Contact Rating
1 HP @ 115 VDC, 1 HP @ 230 VDC
Pressure Switch Action
Standard
Differential
24 to 45 PSI
Pressure Switch Application
Air Compressor and Water Pump
Differential Pressure
24 to 45
Pressure Switch Differential
24 to 45 PSI
Enclosure
NEMA 1
Pressure Switch Electrical Contact Form
DPST
Factory On/Off Setting
130/175 psi
Pressure Switch Factory On/Off Setting
130/175 PSI
HP @ 1 Phase - 120 V
2
Pressure Switch Port Type
(1) Port, 1/4 in. FNPS
HP @ 1 Phase - 230 V
3
Pressure Switch Range
32 to 250 psi
HP @ 1 Phase - 240 V
3
Pressure Switch Unloader
No
HP @ 3 Phase - 230 V
5
Range
32 to 250 PSI
HP @ 3 Phase - 240 V
5
Series
9013Ghg
HP @ 3 Phase - 460 V
5
Shipping Weight
2.15 lb.
HP @ 3 Phase - 480 V
5
Temperature Range
-22 deg. F to 257 deg. F
IP Rating
54
Type
Air Compressor and Water Pump
Item
Pressure Switch
Unloader
No
General
Application
Air Compressor and Water Pump
HP @ 3 Phase - 460V
5
HP @ 1 Phase - 120V
2 hp
HP @ 3 Phase - 480V
5 hp
HP @ 1 Phase - 230V
3
Includes
3-Way Lever (On-Auto-Off)
HP @ 1 Phase - 240V
3 hp
Special Features
Nitrile (Buna-N) Diaphragm
HP @ 3 Phase - 230V
5
Standards
UL 508, NEC Article 430-84, ANSI /NSF Standard 61, FDA 21CFR.2600, CSA Certified
HP @ 3 Phase - 240V
5 hp
Product Description
This pressure switch is designed for the control of electrically driven water pumps and air compressors. It features a high electrical rating for the direct control of motors in pump and compressor applications.
