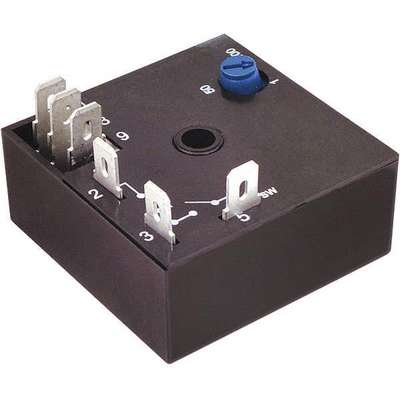

Airotronics Multi-Function Encapsulated Timing Relay, Function: Interval/Watchdog, Status Indicator: None, 10A C

Hover over image to magnify
Encapsulated Timer Rlay,10A,
Encapsulated Timer Rlay,10A,
Airotronics Multi-Function Encapsulated Timing Relay, Function: Interval/Watchdog, Status Indicator: None, 10A C Video

#925435-8 | Pkg Qty: 1

$33.47 pkg | $33.47 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
AC Contact Rating
10 A @ 120 V
Mfr. Part Number
TGMPL10100A1H
Adjustment Method
Potentiometer
Minimum Time Setting
1 sec.
Base Type
Surface
Mounting
Surface
Body Depth
2 in.
Number of Contacts
2
Body Height
0.85 in.
Number of Functions
2
Body Width
2 in.
Number of Pins
6
Brand
AIROTRONICS
Operating Functions
4, 11
Coil Volts
120 VAC
Output
Relay
Contact Form
SPDT
Overall Height
1.3 in.
Contact Material
Silver Tin
Package Quantity
1
Function
Interval/Watchdog
Pins
6
HP @ 120 V
NO, 1/10 @ 3AFLA
Resistive Contact Amp Rating
10A
HP @ 240 V
NO, 1/6 @ 2AFLA
Shipping Weight
.2 lb.
Hz
50/60
Socket Code
Surface
Input Voltage
120 VAC
Status Indicator
None
Input or Control Voltage
120 VAC
Timing Range
1.00 sec. to 100.00 sec.
Item
Multi-Function Encapsulated Timing Relay
Type
Potentiometer
Maximum Time Setting
100 sec.
Type of Output
Relay
General
AC Contact Rating - Relay
10A @ 120V
Hz - Electrical
50 Hz, 60 Hz
Adjustment Method - Timer
Potentiometer
Max. Time Setting - Timer
1 min 40 sec
Body Depth - Relay
2.0 in
Min. Time Setting - Timer
1 sec
Body Height - Relay
0.85 in
Mounting - Relay
Surface
Body Width - Relay
2.0 in
Number of Pins - Relay
6
Contact Form - Relay
SPDT
Overall Height - Relay
1.3 in
Function - Timing Relay
Interval, Watchdog
Standards
UL508, Ulr
HP @ 120V
NO, 1/10 @ 3AFLA
Timer Range
1.00 sec. to 100.00 sec.
HP @ 240V
NO, 1/6 @ 2AFLA

Product Description

Solid-state technology provides a long service life, reducing maintenance costs and production loss due to downtime. 1/4" quick-connect.

When power is applied to the coil, the On Delay timing period begins. The contacts do not transfer at this time. At the end of the On Delay period the contacts transfer, either connecting (normally open contacts) or disconnecting (normally closed contacts) the load. The contacts stay in the transferred state until power is removed from the coil. They then return to their original state and the unit is ready for a new cycle.

Item Barcode
9254358
