SPEEDAIRE

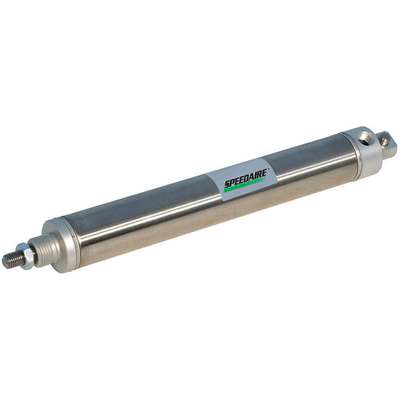

7/8" Air Cylinder Bore Dia. with 1" Stroke Stainless Steel , Pivot Mounted Air Cylinder
#925402-5 | Pkg Qty: 1
$59.54 pkg | $59.54 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Air Consumption
scfm
End Cap Material
Aluminum
Air Cylinder Mount
Pivot
Finish
Hard Coat Anodized
Air Cylinder Type
Round Body
Item
Air Cylinder
Body Material
Stainless Steel
Maximum Pressure
250 psi
Brand
SPEEDAIRE
Mfr. Part Number
NCDMC088-0100CS
Cushion Type
Rubber Bumper
Mount
Pivot
Cylinder Action
Single Acting
Mounting Style
Rear Pivot
Cylinder Ports
1/8 in. NPT
Overall Length
4.81 in.
Cylinder Type
Round
Package Quantity
1
Dimension A
4.81 in.
Port Size
1/8 in. NPT
Dimension B
0.93 in.
Shipping Weight
.28 lb.
Dimension C
1 in.
Stroke
1 in.
Dimension D
5/8 in.-18 UNF
Tube Material
Stainless Steel
Dimension E
1/8 in. NPT
Type
Single Acting
Dimension F
0.38 in.
General
Action Type
Single Acting
Rod Dia.
0.25 in
Air Cylinder Bore Dia.
7/8 in
Rod Thread Length
0.5 in
Air Cylinder Product Group
Air Cylinder
Rod Thread Size
1/4"-28 UNF
Bore Dia.
7/8 in
Single Acting/Double Acting
Single Acting
End Caps
Aluminum
Spring Extension Force
3 lb
Features
Spring Return, Switched, Rubber Cushions
Spring Extension Force (Lb.)
3
Magnetic Piston
Yes
Spring Retraction Force
6 lb
Nose Mount Thread
5/8"-18 UNF
Spring Retraction Force (Lb.)
6
Piston Rod
Stainless Steel
Tang Width
0.38"
Piston Rod Material
Stainless Steel
Product Description
Single-Acting Stainless Steel Body Air Cylinders
- Spring return Operating pressure range: 25 to 250 psi Operating temp. range: 40° to 140°F Include magnetic piston for use with autoswitches Permanently lubricated, nonrepairable cylinders are dimensionally interchangeable with a number of manufacturers' cylinders. Chrome-plated carbon steel piston rod and stainless steel tube improve corrosion resistance. Piston magnet allows autoswitches to sense stroke piston. NPT ports. Rubber bumper.
