VELVAC

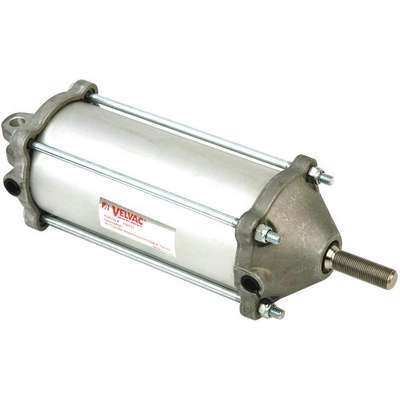

3-1/2" Air Cylinder Bore Dia. with 8.68" Stroke Aluminum , Clevis Mounted Air Cylinder

Hover over image to magnify
Air Cylinder,Air,3-1/2 In.
Air Cylinder,Air,3-1/2 In.

#925310-7 | Pkg Qty: 1

$282.78 pkg | $282.78 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Air Consumption
scfm
Finish
Brushed
Air Cylinder Mount
Clevis
Item
Air Cylinder
Body Material
Aluminum
Maximum Load
769-1/2 lb.
Brand
VELVAC
Maximum Pressure
100 psi
Cylinder Action
Double Acting
Mfr. Part Number
100132
Cylinder Ports
1/4-18 NPTF
Mount
Clevis
Cylinder Type
Push/Pull
Package Quantity
1
Dimension A
1-3/4
Port Size
1/4 in.-18 NPTF
Dimension Cd
1/2
Shipping Weight
6.65 lb.
Dimension Kk
5/8-18 UNF-2A
Stroke
8.68 in.
End Cap Material
Aluminum
Tube Material
Aluminum
General
Action Type
Push/Pull
Pivot Hole Dia.
0.5 in
Air Cylinder Bore Dia.
3 1/2 in
Rod Dia.
0.625 in
Air Cylinder Product Group
Air Cylinder
Rod Thread Length
1.75 in
Bore Dia.
3 1/2 in
Rod Thread Size
5/8"-18 UNF
End Caps
Aluminum
Single Acting/Double Acting
Double Acting
Features
Push/Pull
Spring Retraction Force
1.0479 lb
Magnetic Piston
Yes
Tie Rod Material
Metal
Piston Rod
Metal
Tie Rods
Metal
Piston Rod Material
Metal

Product Description

Air Cylinder, Air Cylinder, Double Acting, Air Cylinder Bore Dia. 3 1/2 in, 8 17/25 in Stroke, Clevis Air Cylinder Mount, Aluminum Body Material, 1/4 In.-18 NPTF Port Size, -60 Degrees F Temp. Range, 15.6 in Retracted Overall Length, 769.5 lb Max. Load, Double Acting Buna-N Emralon Coated Piston Material, 100 psi Max. Pressure, Brushed Finish, Aluminum End Cap Material, Metal Piston Rod Material, Magnetic Piston Yes, Tie Rod Material Metal, Tube Material Aluminum, 0.625 in Rod Dia.
