LITHONIA LIGHTING

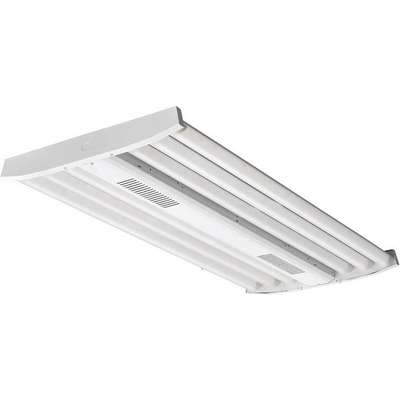

47-3/8" x 20-1/8" x 2-3/4" Linear High Bay with 45,973 Lumens and Narrow Light Distribution

Hover over image to magnify
LED High Bay,301W,Narrow
LED High Bay,301W,Narrow

#925306-4 | Pkg Qty: 1

Alternate products displayed may not be identical in style or function to original selection.
No alternate products are currently available
See more options:

Technical Specifications

Key Specifications
Brand
LITHONIA LIGHTING
Light Technology
LED
Color Temperature
4000 K
Lumens
45973 lm
Dimming
Yes
Mfr. Part Number
IBG48000LMSEFAFLNDMVOLTGZ1040K80CRIDWH
IP Rating
5X
Pack Quantity
1
Item
LED High Bay
Shipping Weight
22.75 lb.
Lamp Watts
301 W
Watts
301 W
General
Ambient Temp. Range
-40 Degrees to 131 Degrees F
Lighting Certification
DesignLights Consortium (DLC)
Ballast Start Type
Program Start
Lumens per Watt
166 lm/W
Bay Light Type
High Bay
Max. Ambient Temp.
131 Degrees F
Bulbs Included
Yes
Max. Fixture Wattage
301 W
CA Title 24 Compliant
No
Min. Ambient Temp.
-40 Degrees F
Emergency Battery Backup
No
Nominal Size - Fixtures
1 ft x 4 ft
Fixture Type - High and Low Bay Fixtures
Linear High Bay
Number of Light Bars
6
Fixture Voltage
120 to 277
Overall Length
47 1/4 in
For Bulb Type
LED
Overall Width
15 1/2 in
Green Certification/Other Recognition
DesignLights Consortium (DLC)® Listed
Rated Life
0 hr, 100 hr
Green Environmental
Product Contributes To Reducing Energy Consumption
Reflector Material
Acrylic
LED Replacement For
1000W HPS/MH
Standards
UL1598, CSA Certified to U.S. and Canadian Safety Standards
Lamp Watts - Fixtures
284 W
Suggested Fixture Mounting Height
Up to 60 ft
Light Distribution
Narrow

Product Description

These high bay lights hang from ceilings or open trusses at a suggested mounting height of 20 to 40 ft. from the floor or work surface.

Item Barcode
9253064
LED High Bay,301W,Narrow
 NameItemDescription
Grainger DropshipGrainger Dropship53KD46LED High Bay, 301W,Narrow
UNSPSC CODESUNSPSC CODES39111521
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009LED High Bay, 301W,Narrow
