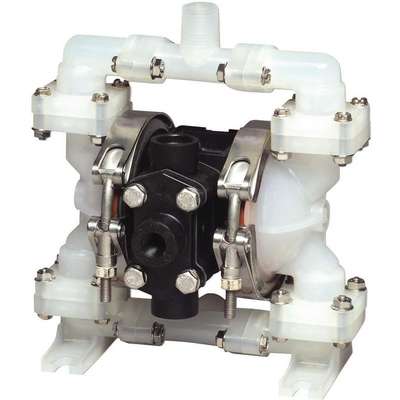

Polypropylene Santoprene® Single Double Diaphragm Pump, 4 gpm, 100 psi
#925135-7 | Pkg Qty: 1
$513.00 pkg
| $513.00 ea
| Item Number | 925135-7 |
| Scanner Description | Double Diaphragm Pump,Air |
| Inventory Status | Drop Ship Item |
| Weight | 4.35 lb |
| Brand | SANDPIPER |
Technical Specifications
Agency Compliance
CE, ATEX, EAC
Manifold Connection
Single
Air Inlet Size
1/4 in. FNPT
Manufacturers Warranty Length
1 yr.
Ball Material
Santoprene®
Maximum Diameter Solids
1/32 in.
Body Material
Polypropylene
Maximum Flow
4 gpm
Brand
SANDPIPER
Maximum Flow (GPM)
4
Check Seat Material
Polypropylene
Maximum Operating PSI
100
Connection Style
NPT
Maximum Operating Pressure
100 psi
Diaphragm Design
Santoprene®
Maximum Temperature (Deg. F)
275°F
Diaphragm Material
Santoprene®
Mfr. Part Number
PB 1/4,TS3PP.
Flow
4 gpm
Operation Type
Air Operated
For Use With
Highly Corrosive Fluids, Intermittent/On-Demand, Low Abrasive Fluids, and Suspended Solids
Pack Quantity
1
Height
7-13/16 in.
Pump Operation Type
Air Operated
Housing Material
Polypropylene
Self-Priming Dry
5 ft.
Inlet/Outlet
1/4 in.
Self-Priming Wet
15 ft.
Inlet/Outlet Size
1/4 in.
Valve Type
15 ft.
Item
Double Diaphragm Pump
Width
7 in.
Length
5-1/2 in.
Product Description
Ideal for pumping solvents, slurries, and high-viscosity liquids such as paints and inks. Body pump features all-bolted construction and abrasion- and corrosion- resistant materials. Free-standing support base is useful in portable applications.
Item Barcode
| Name | Item | Description | |
|---|---|---|---|
|
Grainger Dropship | 12W412 | Double Diaphragm |
|
UNSPSC CODES | 40151548 | |
|
VMRS (ATA) CODES | 053-006-009 | Double Diaphragm |
