MARATHON MOTORS

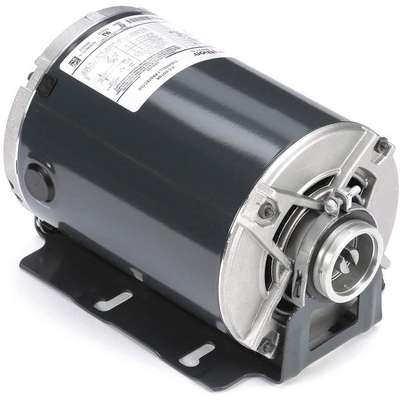

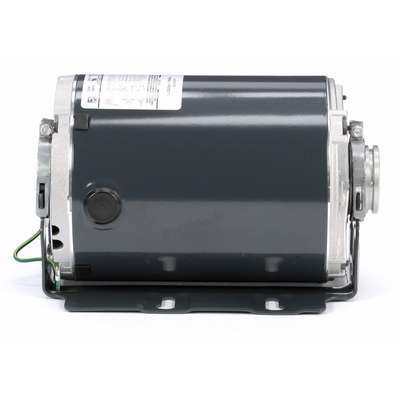

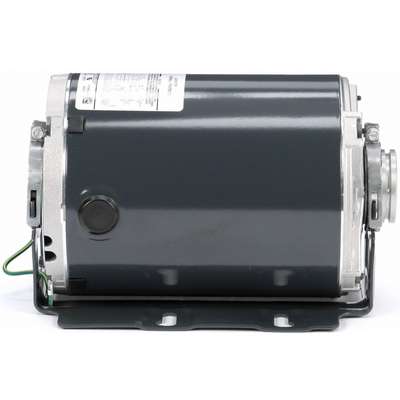

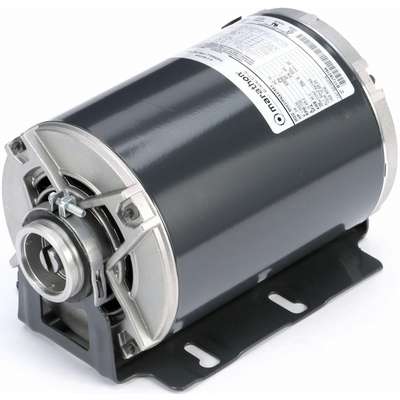

Marathon Motors 3/4 HP Split-Phase Carbonator Pump Motor, 1725 Nameplate RPM, 115/230 Voltage, 48Y Frame
#925116-5 | Pkg Qty: 1
$435.53 pkg | $435.53 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bearings
Ball
Motor Type
Split-Phase
Brand
MARATHON MOTORS
Mounting
Cradle Base
Duty
Continuous
NEMA/IEC Frame
48Y
Duty Cycle
Continuous
Nameplate RPM
1725
Enclosure
Open Dripproof
Overall Length
9-1/8 in.
Frame
48Y
Pack Quantity
1
Full Load Amps
10.4/5.2
Phase
Single
Height
5-13/16 in.
Rotation
CCW
Hz
60
Service Factor
1
Insulation Class
B
Shaft Length
3/16 in.
Item
Carbonator Pump Motor
Shipping Weight
21.16 lb.
Length Less Shaft
9 in.
Thermal Protection
Auto
Mfr. Part Number
5KH37PNA479X
Voltage
115/230 VAC
Motor Design
Split-Phase
General
Application
Liquid Transfer Machines, Vending Machine Pumps, Othe Hub Mounted Pump Applications
Motor Shaft Rotation
CW/CCW
Body Dia.
5.6 in
Motor Sub Application
Carbonator Pump
HP
3/4
Motor Thermal Protection
Auto
Ins. Class
B
No. of Speeds
1
Max. Ambient Temp.
40 °C
Nominal Efficiency
68.3 %
Motor Application
Pump
RPM Range
1,701-1,800
Motor Bearings
Ball
Shaft Dia.
5/8 in
Motor Enclosure Design
Open Dripproof
Standards
CE Mark, CSA Certified, UL Recognized
Motor Frame Material
Steel
Usable @ 200V
No
Motor Mounting Position
All Angle
Usable @ 208V
No
Motor Mounting Type
Cradle Base
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Service Factor
1
Product Description
Split-phase carbonator pump AC motors are single phase with a lower starting torque for softer startup where the pump must gradually come up to speed after startup. They have an open dripproof (ODP) enclosure with ventilation openings in the endshields and shell positioned so that drops of liquid falling within 15° from vertical will not affect motor performance.
