WIDIA GTD

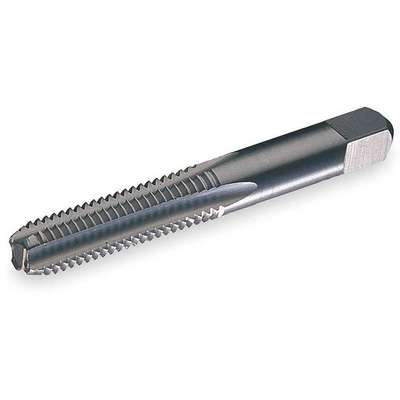

3/4"-10, Tap, Left Hand, Bottoming, 4 Flutes, High Speed Steel, Uncoated Tap Finish
Hover over image to magnify
#925082-2 | Pkg Qty: 1
$69.64 pkg | $69.64 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
WIDIA GTD
Shank Length
2-1/4 in. in.
Cutting Direction
Left
Shipping Weight
.28 lb.
Dimension Type
Decimal Inch
Size
3/4 in.
Flutes
4
Spiral Direction
Left Hand
Grade
GM6515
Square Size
0.442 in.
Insert Material
High Speed Steel
Subgroup | Tap
Straight Flute
Item
Straight Flute Tap
Tap Chamfer
Bottoming
List Number
5305L/5303L
Tap Dimension Type
Inch
Material
High Speed Steel
Tap Finish
Bright (Uncoated)
Mfr. Part Number
14454
Tap Material
High Speed Steel
Number of Flutes
4
Tap Size
3/4 in.
Number of Pieces
1
Tap Style
Straight Flute (Hand)
Overall Length
4-1/4 in.
Tap Thread Size
3/4 in.-10
Package Quantity
1
Tap Thread Type
UNC
Pitch
10
Thread Direction
Left Hand
Pitch Diameter Limits
H3
Thread Length
2 in.
Primary Material Application
Steel
Thread Type
UNC
Series
5305L/5303L
Tolerance
3B
Shank Diameter
37/64 in.
Type
Bottoming
General
55% Thread Drill Size
17.20 mm
Shank Dia.
37/64 in
65% Thread Drill Size
16.90 mm
Shank Type - Machining
Straight
75% Thread Drill Size
16.50 mm
Standards
ANSI, USCTI 302
Application
Use in Steel Less Than 30 Rc, Stainless Steel Less Than 30 Rc, Non-ferrous Materials and Cast and Ductile Iron
Tap Grouping
Individual
Coolant Fed
Non-Coolant Through
Tap Length Standard
ANSI
Extended Neck
Yes
Tap Shank Standard
ANSI
Measurement System
Fractional Inch
Thread Limit
H3
Primary Material Application ISO Code
P
Thread Limit / Class of Fit
H3
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel
Thread Standard
UNC
Secondary Material Application ISO Code
K, M, N
Threads per Inch
10
Product Description
Heavy-Duty Left-Hand HSS Taps
- 5305L/5303L are for use with steel, stainless steel, and nonferrous metals 101L are for use with aluminum and carbon steel
- For tapping left-hand threads. Use for general machine or CNC tapping.
