SQUARE D

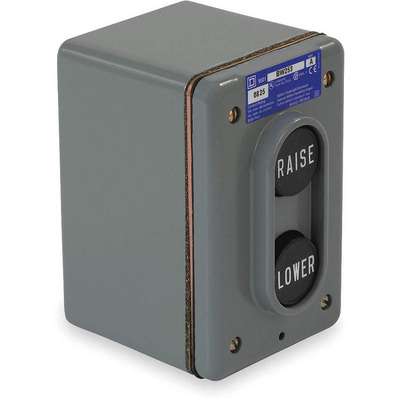

Push Button Control Station, 2NO, Raise/Lower, Push Button/Push Button, Number of Operators 2

Hover over image to magnify
Push Bttn Cntrol Station,2NO,
Push Bttn Cntrol Station,2NO,

#925041-1 | Pkg Qty: 1

Alternate products displayed may not be identical in style or function to original selection.
No alternate products are currently available
See more options:

Technical Specifications

Key Specifications
Action
Momentary/Momentary
Length
4-1/4 in.
Amperage
5 A
Material of Construction
Cast Zinc
Brand
SQUARE D
Mechanical Interlock
No
Color Family
Gray
Mfr. Part Number
9001BW253
Contact Form
2NO
Mounting
Wall
Contact Rating
5 A @ 600 VAC/24 VDC
NEMA Contact Rating Designation
B600/P600
Contact Type
2NO
NEMA Rating
4
Depth
4-1/4 in.
Number of Operators
2
Enclosure Color
Gray
Package Quantity
1
Enclosure Material
Die Cast Zinc
Product Size
30 mm
Height
3.6 in.
Shipping Weight
2.37 lb.
Hub
1/2 in. to 3/4 in. NPT
Type
Preassembled
IP Rating
66
Type of Operator
Push Button/Push Button
Item
Push Button Control Station
Voltage
600 VAC/DC
Legend
Raise/Lower
Width
2.76 in.
Legend Markings
Raise/Lower
General
Standards
CSA Certified, CE

Product Description

NEMA 1 and NEMA 4 (Indoor) Contact blocks rated 0.6A at 600VAC, 0.75A at 480VAC, 1.5A at 240VAC, 3.75A at 120VAC. Imperial 2XV series are also CSA Recognized, CE Certified, and NEMA B600-P600. Assembled Control Stations

  • Metal NEMA enclosures 600VAC/DC max. Surface-mount stations for use with magnetic motor starters to control functions of electric motors. Not for direct starting or stopping of motors.
