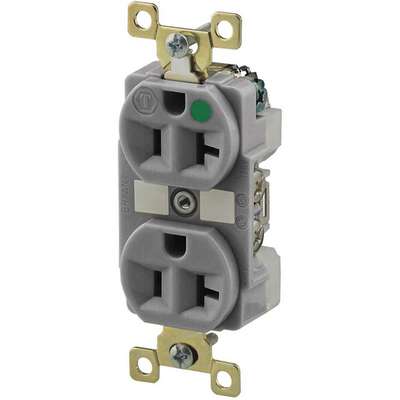

20A Heavy Use Hospital Grade Receptacle, Gray; Tamper Resistant: No

20A Heavy Use Hospital Grade Receptacle, Gray; Tamper Resistant: No

#925010-4 | Pkg Qty: 1

$10.82 pkg | $10.82 ea
Item Number 925010-4
Scanner Description Receptacle,Gray,20A,5-20R Nema
Inventory Status Drop Ship Item
Weight 0.21 lb
Brand BRYANT

Technical Specifications

Amperage
20 A
Number of Wires - Electrical
3
Application Environment
Heavy Use Hospital Grade
Outlet Type
Duplex
Brand
BRYANT
Pack Quantity
1
Color Family
Gray
Phase
1
Corrosion Resistant
Yes
Power Indicator
No
HP (Horsepower)
1
Standards
UL Listed, CSA Certified
Item
Receptacle
Subcategory
Duplex Receptacles
Material
Nylon
Surge Suppression
No
Mfr. Part Number
BRY8300GRY
Tamper Resistant
No
Mounting Type
Flush
Type
Straight Blade
NEMA Configuration
5-20R
Voltage
125 VAC
NEMA Receptacle Configuration
5-20R
Weather Resistant
No
Number of Gangs
1
Wiring Method
Back and Side
Number of Poles
2

Product Description

This hospital grade receptacle is designed to withstand the severe conditions of abuse that are unique to hospital environments. Built with nickel-plated bypass contacts that increase contact pressure and help lower operating temperature. The four-point grounding system provides redundant grounding for low resistance ground continuity, and thermoplastic polyester (RTP) back is tough and heat-resistant. To quality for the hospital grade designation and use of the green dot symbol, UL requires product performance to specific levels. These levels form an established baseline below which no manufacturer can fall and still carry a green dot.

Item Barcode
9250104
  Name Item Description
Grainger Dropship Grainger Dropship 52HD49 Receptacle, Gray,20A,5-
UNSPSC CODES UNSPSC CODES 39121406
VMRS (ATA) CODES VMRS (ATA) CODES 034-003-036 Receptacle, Gray,20A,5-
