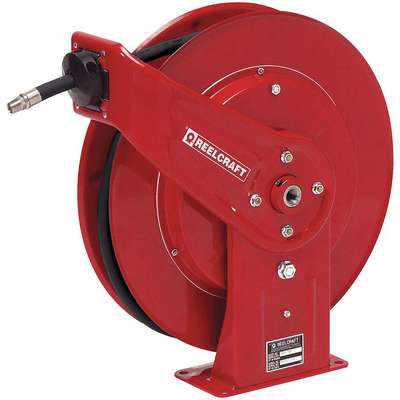

Spring Return Hose Reel, 25 ft. Hose Length, Spring Return, Powder Coated

Hover over image to magnify
Hose Reel,3/4",25 Ft,300 PSI
Hose Reel,3/4",25 Ft,300 PSI
Spring Return Hose Reel, 25 ft. Hose Length, Spring Return, Powder Coated Video
Spring Return Hose Reel, 25 ft. Hose Length, Spring Return, Powder Coated Video
Spring Return Hose Reel, 25 ft. Hose Length, Spring Return, Powder Coated Video

#924999-2 | Pkg Qty: 1

$1,430.80 pkg | $1,430.80 ea

Loading Stock Status...

Item Number 924999-2
Scanner Description Hose Reel,3/4",25 Ft,300 PSI
Inventory Status Drop Ship Item
Weight 48.3 lb
Brand REELCRAFT

Technical Specifications

Action
A
Includes
Hose and Ball Stop
Application
Diesel Exhaust Fluid
Item
Spring Return Hose Reel
Bearings
Permanently Lubricated
Latch
Locking
Brand
REELCRAFT
Length
19 in.
Drive Type
Spring Return
Maximum Pressure
300 psi
Duty Rating
Heavy Duty
Maximum Temperature (Deg. F)
150
Enclosed Reel
No
Mfr. Part Number
UR7925 OLB 1
Finish
Powder Coated
Mounting
Wall, Column, Ceiling, Bench, Truck
Height
20-1/4 in.
Outside Height
20-1/4 in.
Hose Ends
3/4 in. (M)NPT
Overall Length
19 in.
Hose Included
Yes
Overall Width
7 in.
Hose Inside Diameter
3/4 in.
Pack Quantity
1
Hose Length
25 ft.
Reel Inlet
3/4 in. (F)NPT
Hose Material
DEF
Seal Type
Viton®
Hose Reel Media
Diesel Exhaust Fluid
Type
Heavy Duty
Housing Material
Steel
Width
7 in.

Product Description

Drum pump hose reels are storage devices with a spool for hose to wind onto and a recoil mechanism that can be activated to automatically rewind the hose. They have two connections: one for the discharge hose and one for the hose that connects the reel to the pump outlet. The discharge hose can be extended from the reel to provide the length needed for an application and then retracted when no longer in use. These reels keep lengths of hose neatly wound to help prevent kinks or damage and hold hose off the ground to reduce tripping hazards. They're commonly used to store and organize long lengths of hose.
