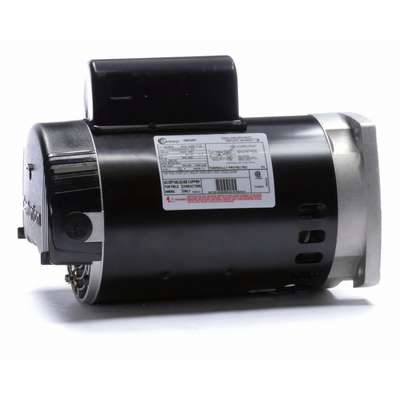

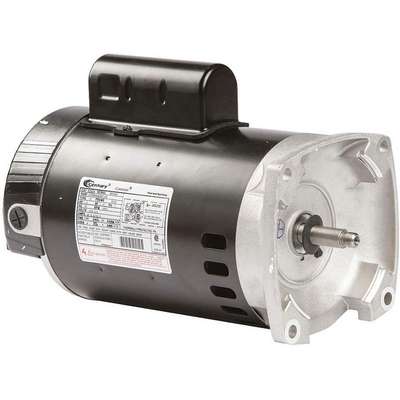

Century 1-1/2 HP Pool and Spa Pump Motor, Permanent Split Capacitor, 115/230V, 56Y Frame
Hover over image to magnify
#924957-7 | Pkg Qty: 1
$423.19 pkg | $423.19 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bearings
Ball
Mounting
Face
Brand
CENTURY
NEMA/IEC Frame
56Y
Duty
Continuous
Nameplate RPM
3450
Enclosure
Open Dripproof
Package Quantity
1
Finish
Black
Phase
Single
Flange Material
Aluminum
Rotation
CCWSE
Frame
56Y
Service Factor
1.1
Full Load Amps
16.0/8.0
Shaft
Threaded 1/2-20 UNF-2A RH (External) and 1/4-20 UNC-2B LH (Internal)
Hz
60
Shaft Length
7/16 in.
Insulation Class
F
Shaft Material
Stainless Steel
Item
Pool and Spa Pump Motor
Shipping Weight
26.3 lb.
Mfr. Part Number
B2854V1
Thermal Protection
Auto
Motor Design
Permanent Split Capacitor
Voltage
115/230 VAC
Motor Type
Permanent Split Capacitor
General
Ambient Temperature
50 °C
Motor Service Factor
1.1
Application
Pool and Spa Pumps
Motor Shaft Rotation
CCWSE
Efficiency Group
Standard
Motor Sub Application
Pool and Spa Pump
HP
1 1/2
Motor Thermal Protection
Auto
Ins. Class
F
No. of Speeds
1
Max. Ambient Temp.
50°C
RPM Range
3,001-3,600
Motor Application
Pump
Shaft Dia.
5/8 in
Motor Bearings
Ball
Standards
CSA, UL
Motor Efficiency Group
Standard Efficient
Usable @ 200V
No
Motor Enclosure Design
Open Dripproof
Usable @ 208V
No
Motor Flange Material
Aluminum
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Mounting Type
Face
Product Description
This single-compartment, permanent split capacitor motor can be used as an equivalent replacement for most popular pool and spa manufacturers' pumps. Must equal or exceed service factor and HP for proper replacement. Auto thermal protection helps protect against damage caused by overheating. Ball bearings. UL Recognized and CSA Certified.
Expertly Selected Product Pairings
Compliance & Restrictions
Shipping Exclusions: CA NY
Item Barcode
Pool Motor,1-1/2 Hp,3450 Rpm,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 16U440 | Pool Motor,1- 1/2 HP,3450 |
 | UNSPSC CODES | 26101107 | |
 | VMRS (ATA) CODES | 053-006-009 | Pool Motor,1- 1/2 HP,3450 |
