TACO

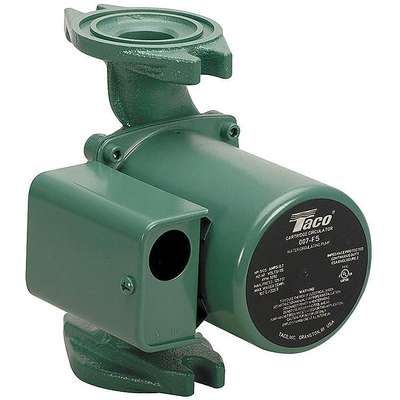

Hydronic Circulating Pump: Std, Taco, Flanged, 1/25 HP, 10 ft Max. Head, 6 3/8 in Face to Face
Hover over image to magnify
#924909-5 | Pkg Qty: 1
$273.53 pkg | $273.53 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps
0.71 A
Length
6-1/8 in.
Bearing Type
Carbon
Loop Configuration
Closed
Best Efficiency GPM @ Head
8 gpm @ 6 ft.
Maximum GPM @ Head
16 gpm @ 1 ft.
Brand
TACO
Maximum Head
11 ft.
Connection Style
Flange
Maximum Operating Pressure
125 psi
Drive Type
Direct
Maximum Temperature (Deg. F)
240
Face to Face Dimension
6-3/8 in.
Maximum Working Pressure
125
Flange/Union Included
No
Mechanical Seal
No
GPM of Water @ 1 Ft. of Head
12-1/2
Mfr. Part Number
007-F5-7IFC
GPM of Water @ 10 Ft. of Head
3
Mfr. Warranty Length
3 yr.
GPM of Water @ 2 Ft. of Head
11-1/2
Minimum GPM @ Head
3 gpm @ 10 ft.
GPM of Water @ 3 Ft. of Head
10-1/2
Number of Speeds
1
GPM of Water @ 4 Ft. of Head
10
Pack Quantity
1
GPM of Water @ 5 Ft. of Head
9
Phase
1
GPM of Water @ 6 Ft. of Head
8
Pump Mount
In Line
GPM of Water @ 7 Ft. of Head
7
Pump Type
In Line, Wet Rotor
GPM of Water @ 8 Ft. of Head
6
RPM
3250
GPM of Water @ 9 Ft. of Head
4-1/2
Series
007-F5-7Ifc
HVAC Circulating Pump Type
Hydronic Circulating Pump
Shaft Material
Ceramic
Horsepower
1/25
Shipping Weight
8.05 lb.
Housing Material
Cast Iron
Shut-Off
8.5 ft.
Impeller Material
Polypropylene
Thermal Protection
Impedance
Inlet/Outlet
Flanged
Type
Closed Loop
Inlet/Outlet Size
3/4 in. to 1-1/2 in.
Voltage
115 VAC
Item
Hydronic Circulating Pump
Width
5 in.
General
Body Gasket Material
EPDM
Maximum Feet of Head
10 ft
Brand and Connection Combo
TACO , Flange Connection
Maximum Flow Rate @ 1 Feet of Head
22 gpm
Compatible Discharge Pipe Size
3/4 in, 1 in, 1 1/4 in, 1 1/2 in
Maximum Flow Rate @ 10 Feet of Head
0 gpm
Compatible Intake Pipe Size
3/4 in, 1 in, 1 1/4 in, 1 1/2 in
Maximum Flow Rate @ 5 Feet of Head
15 gpm
Features
wet rotor, maintenance free
Mounting Location
In-Line
Flange or Union Included
No
Nameplate Voltage
115V AC
For Use With Potable Systems
Yes
Phase and Brand
TACO Single Phase
Includes
Flange Gaskets, Impedance Thermal Proctection
Pump Housing Material
Cast Iron
Manufacturer Warranty Length
3 yr
Standards
UL-CUS
Product Description
Taco® circulator pump prevents gravity flow, reduces installation costs, and improves pump performance with its removable high-flow Integral Flow Check (IFC®). Suited for a wide array of applications.
