SQUARE D

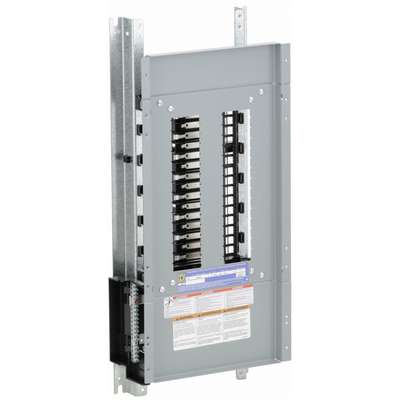

Panelboard Interior, 225 Amps, 120/240 VAC Voltage, Number of Spaces: 30

Hover over image to magnify
Panelbrd Interior,225A,120/240V
PI_Asset_1370567
Panelbrd Interior,225A,120/240V
PI_Asset_1370567

#924788 | Pkg Qty: 1

$1,274.00 pkg | $1,274.00 ea

Technical Specifications

Key Specifications
Aluminum Wire (AWG/kcmil)
(1) 6 to 350
Mains
Convertible
Amperage
225 A
Material of Construction
Silver-Plated Copper
Amps
225 A
Maximum Wire Size
3 AWG
Brand
SQUARE D
Mfr. Part Number
NQ30L2C
Bus Material
Silver Plated Copper
Number of Spaces
30
Circuit Breaker Type
QO/QOB
Pack Quantity
1
Copper (AWG/kcmil)
(1) 6 to 350
Phase
1
Depth
5-3/4 in.
Recommended Flush Cover
4HGZ9 for Main Lug, 4HHA1 for Main Breaker
Enclosure
1D691 for Main Lug, 1D698 for Main Breaker
Recommended Ground Bar Kit
5B716
Flush Cover
4HGZ9 for Main Lug, 4HHA1 for Main Breaker
Recommended Surface Cover
3TX80 for Main Lug, 3TX84 for Main Breaker
Ground Bar Kit
5B716
Shipping Weight
16.75 lb.
Height
27 in.
Short Circuit Current Rating
100000 RMS Symmetrical
Item
Panelboard Interior
Surface Cover
3TX80 for Main Lug, 3TX84 for Main Breaker
Main Circuit Breaker
Main Lug, Convertible
Type
Main Lug
Main Circuit Breaker Adapter Kit
4HHA3, 4HHA4,Mfr. No. NQMB2KI
Voltage
120/240 VAC
Main Circuit Breaker or Main Lug
Main Lug, Convertible
Width
10-7/16 in.
General
Circuit Breaker Series
QHB, QOB, QOB-VH
Recommended Enclosure
1D691 for Main Lug, 1D698 for Main Breaker
For Use With
NQ Circuit Breakers

Product Description

These Square D NQ main lug panel interiors distribute power downstream from main breakers and are used with QO plug-in and QOB bolt-on circuit breakers to protect circuits from overcurrents. These interiors are used when all the circuit slots in the main breaker load center are full or when a remote panel is desired. They can be converted to a main breaker load center with a required adapter kit and main circuit breaker, so they can be used to distribute the main supply of power if needed. These interiors are used as part of a complete panelboard system and can be customized to meet different needs. They can be used for lighting and appliance protection in commercial and industrial applications.
