Light- Medium Duty, Rigid Plate Caster with Pneumatic Wheels; 300 lb. Load Rating, 9" Wheel Dia.

Hover over image to magnify

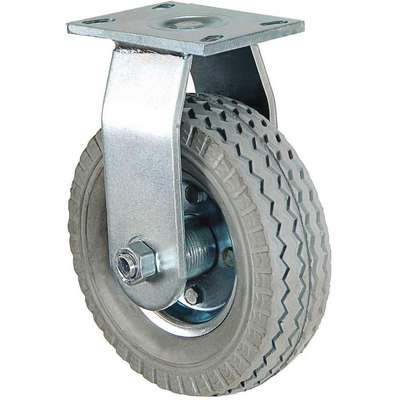

Rigid Pneumatic Caster,9 In.,
PI_Asset_947818
Rigid Pneumatic Caster,9 In.,
PI_Asset_947818

#924751-1 | Pkg Qty: 1

$49.47 pkg | $49.47 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Mfr. Part Number
1ULH6
Caster Brake Included
No
Mounting Bolt Diameter
3/8 in.
Caster Brake Type
No Brake Included
Mounting Height
10 in.
Caster Load Rating Range
Light- Medium Duty
Non-Marking
No
Caster Plate Hole Pattern
B
Number of Mounting Holes
4
Caster Plate Size
4 in. x 4-1/2 in.
Number of Wheels
1
Caster Wheel Bearings
Precision Ball
Outside Bolt Hole Spacing
2-5/8 in. x 3-5/8 in.
Caster Wheel/Tread Material
Rubber
Package Quantity
1
Caster/Wheel Tread
Sawtooth
Plate Caster Sub-Type
Rigid
Frame Finish
Zinc Plated
Shipping Weight
5.94 lb.
Frame Material
Steel
Wheel Color
Gray
Includes Thread Guards
Yes
Wheel Diameter
9 in.
Inside Bolt Hole Spacing
3 in. x 3 in.
Wheel Width
2-1/2 in.
Item
Plate Caster with Pneumatic Wheels
Wheel/Tread Hardness Rating
Soft
Load Rating
300 lb.
General
Caster Frame Material
Steel
Mounting Plate Size
4 in x 4-1/2 in
Caster Product Group
Rigid Caster
Mounting Plate Size (Bolt Hole Pattern)
4 in x 4-1/2 in (B)
Caster Temp. Range Available
No
Sub-Category
Rigid Caster
Hub Materials
Steel
Tire Rim Dia.
4 5/8 in
Hub Position
Symmetrical
Tire Thickness
2 in
Hub Width
3-5/32"
Wheel Bearing Type
Precision Ball
Load Rating Range
300 to 999 lb
Wheel Dia.
9 in
Mounting Bolt Dia.
3/8 in
Wheel/Tread Material
Rubber
Mounting Plate Bolt Hole Pattern
B

Product Description

Medium-duty pneumatic plate casters have zinc-plated steel frames and lightweight wheels with air-filled tires. These casters cushion loads against shock and vibration, and they have double ball swivels that allow them to swivel smoothly. Pneumatic wheels puncture more easily than semipneumatic and flat-free wheels, and they require maintenance to keep the wheels' tires filled to the correct air pressure. They are suitable for use in areas where they will not encounter sharp debris. These casters can be used on carts, trucks, and similar equipment in locations such as warehouses, transportation facilities, lawn and garden centers, and hospitality sites.

Smooth-ride pneumatic, semipneumatic, and flat-free plate casters have air-filled, foam-filled, or solid-rubber caster wheels that allow them to absorb more shock and vibration, provide more stability, and produce less noise than other types of plate casters. These casters are suitable for transporting fragile or vibration-sensitive loads and for moving loads over rough or uneven surfaces in outdoor areas and industrial facilities. The casters have a mounting plate that mounts onto the bottom of carts and other equipment to allow the equipment to roll, reducing the effort it takes to move or reposition the equipment. They come in swivel and rigid versions. The swivel casters can rotate 360°, allowing equipment to change directions while rolling. The rigid casters roll in a straight line. Two rigid plate casters can be paired with two swivel casters to allow the equipment to both maneuver around curves and obstacles and maintain a straight course while rolling.
