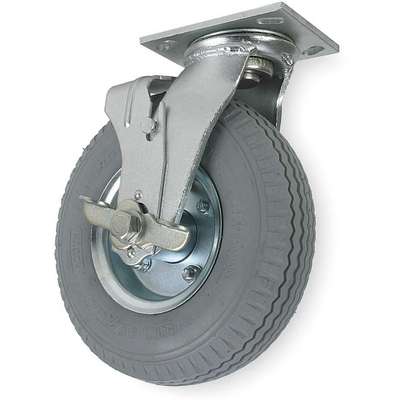

9" Light-Medium Duty Sawtooth Tread Swivel Pneumatic Caster, 300 lb. Load Rating

Hover over image to magnify
Swivel Pneumatc Cstr w/ Brak,9
PI_Asset_928368
PI_Asset_928369
PI_Asset_947818
Swivel Pneumatc Cstr w/ Brak,9
PI_Asset_928368
PI_Asset_928369
PI_Asset_947818

#924751 | Pkg Qty: 1

Alternate products displayed may not be identical in style or function to original selection.
Alternate Products
Swivel Pneumatic Caster,3" W,
$51.72 pkg | $51.72 ea
Item: 913668
Pkg Qty: 1

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Mfr. Part Number
1ULH5
Caster Brake Type
Side Strap
Mounting Type
15
Caster Group
Swivel Caster with Brake
Number of Wheels
1
Caster Load Rating Range
Light- Medium Duty
Outside Bolt Hole Spacing
2-5/8 in. x 3-5/8 in.
Caster Plate Hole Pattern
B
Overall Height
10 in.
Caster Raceway
Double Ball
Package Quantity
1
Caster Sub-Type
Swivel
Plate Size
4 in. × 4-17/32 in.
Caster Temperature Range Available
No
Plate Thickness
7/32 in.
Caster Wheel Bearings
Ball
Plate Type
B
Caster/Wheel Tread
Sawtooth
Ply
4
Frame Finish
Zinc Plated
Shipping Weight
7.22 lb.
Frame Material
Steel
Subcategory
Swivel Caster
Hub Type
Symmetrical
Wheel Bearings
Ball
Inside Bolt Hole Spacing
3 in. x 3 in.
Wheel Diameter
9 in.
Item
Pneumatic Caster
Wheel Width
2-1/2 in.
Load Rating
300 lb.
General
Brake Type
Over-The-Wheel Strap
Mounting Plate Size
4 in x 4-1/2 in
Caster Frame Material
Steel
Mounting Plate Size (Bolt Hole Pattern)
4 in x 4-1/2 in (B)
Caster Product Group
Swivel Caster with Brake
Raceway
Double Ball
Caster Temp. Range Available
No
Sub-Category
Swivel Caster
Hub Materials
Steel
Swivel Raceway Type
Double Ball
Hub Position
Symmetrical
Tire Rim Dia.
4 5/8 in
Hub Width
3-5/32"
Tire Thickness
2 in
Load Rating Range
300 to 999 lb
Wheel Bearing Type
Precision Ball
Mounting Bolt Dia.
3/8 in
Wheel Dia.
9 in
Mounting Plate Bolt Hole Pattern
B
Wheel/Tread Material
Rubber

Product Description

Medium-duty pneumatic plate casters have zinc-plated steel frames and lightweight wheels with air-filled tires. These casters cushion loads against shock and vibration, and they have double ball swivels that allow them to swivel smoothly. Pneumatic wheels puncture more easily than semipneumatic and flat-free wheels, and they require maintenance to keep the wheels' tires filled to the correct air pressure. They are suitable for use in areas where they will not encounter sharp debris. These casters can be used on carts, trucks, and similar equipment in locations such as warehouses, transportation facilities, lawn and garden centers, and hospitality sites.

Smooth-ride pneumatic, semipneumatic, and flat-free plate casters have air-filled, foam-filled, or solid-rubber caster wheels that allow them to absorb more shock and vibration, provide more stability, and produce less noise than other types of plate casters. These casters are suitable for transporting fragile or vibration-sensitive loads and for moving loads over rough or uneven surfaces in outdoor areas and industrial facilities. The casters have a mounting plate that mounts onto the bottom of carts and other equipment to allow the equipment to roll, reducing the effort it takes to move or reposition the equipment. They come in swivel and rigid versions. The swivel casters can rotate 360°, allowing equipment to change directions while rolling. The rigid casters roll in a straight line. Two rigid plate casters can be paired with two swivel casters to allow the equipment to both maneuver around curves and obstacles and maintain a straight course while rolling.
