8 HP Aluminum, Cast Iron 242cc Engine Driven Trash Pump, 1.6 gal Tank Capacity

8 HP Aluminum, Cast Iron 242cc Engine Driven Trash Pump, 1.6 gal Tank Capacity
Engine Driven Trash Pump,8 Hp,
PI_Asset_1355476

#924613-7 | Pkg Qty: 1

$1,949.70 pkg | $1,949.70 ea
Item Number 924613-7
Scanner Description Engine Driven Trash Pump,8 Hp,
Inventory Status Drop Ship Item
Weight 140 lb
Brand TSURUMI

Technical Specifications

Agency Compliance
EPA/CARB
Item
Engine Driven Trash Pump
Application
Dewatering
Length
27-1/2 in.
Bearing Type
Ball, Permanently Lubricated and Sealed
Manufacturers Warranty Length
2 yr.
Brand
TSURUMI
Material of Construction
Aluminum, Cast Iron
Casing Adapter
Aluminum
Maximum Head
90 ft.
Check Valve
Buna-N
Maximum Pressure
39 psi
Drain Plug
3 in. NPT
Maximum Specific Gravity
1
Duty
Heavy
Maximum Suction Lift
26 ft.
Engine Brand
Honda
Mechanical Seal
Silicon Carbide
Engine RPM
3600
Mfr. Part Number
EPT3-80HA
Engine Size
242cc
Minimum GPM @ Head
2 gpm @ 95 ft.
Engine/Motor Type
Gas
Motor RPM
3600
For Use With
Unclean Water
Motor Type
Gas Engine
GPM of Water @ 10 Ft. of Head
350
Outlet
3 in. NPT
GPM of Water @ 2 Ft. of Head
356
Pack Quantity
1
GPM of Water @ 20 Ft. of Head
320
Port Rotation
None
GPM of Water @ 25 Ft. of Head
300
Roll Bar Frame
Steel
GPM of Water @ 30 Ft. of Head
290
Screw Material
Galvanized Steel
GPM of Water @ 40 Ft. of Head
260
Seal Material
Silicon Carbide
GPM of Water @ 50 Ft. of Head
230
Seal Type
Mechanical
GPM of Water @ 60 Ft. of Head
180
Self-Priming
Yes
GPM of Water @ 70 Ft. of Head
140
Sensor Type
Low Oil
GPM of Water @ 80 Ft. of Head
75
Shaft Material
Stainless Steel
GPM of Water @ 90 Ft. of Head
20
Solids Handling Capacity
1-1/2 in.
Height
25-1/2 in.
Temperature Range
33 deg. to 104 deg. F
Horsepower
8
Type
Centrifugal
Housing Material
Cast Aluminum
Volute Material
Cast Iron
Ignition Type
Recoil
Volute/Wear Plate
Cast Iron
Impeller Material
Chrome Iron
Wetted Materials
Cast Iron
Impeller Type
Semi Open
Width
20 in.
Inlet
3 in.

Product Description

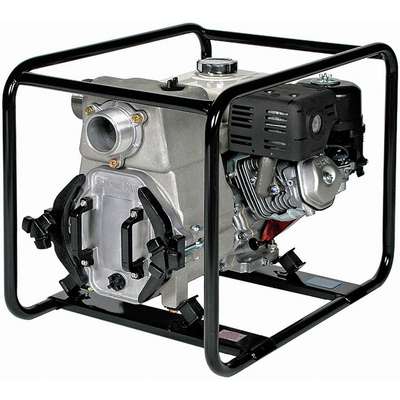

These remote-location engine-driven trash and utility pumps are gasoline powered so they don't need to be placed near an electrical outlet, and they run for long periods of time between refueling. They transfer large amounts of water containing medium to large solids, and they drain water using an inlet hose so the pumps don't have to be placed in the water that needs to be drained. Pumps have a tubular frame to protect the engine and the pump.
