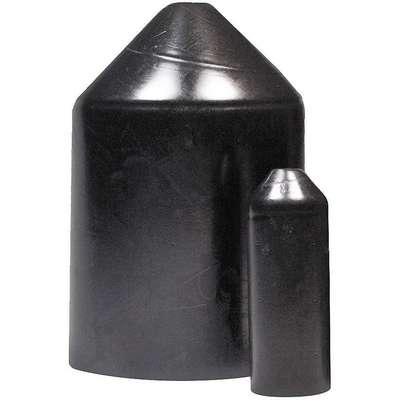

1" Heavy Wall Heat Shrink End Cap Polyolefin, Shrink Ratio 2.5:1

1" Heavy Wall Heat Shrink End Cap Polyolefin, Shrink Ratio 2.5:1

#924581-5 | Pkg Qty: 50

$189.64 pkg | $3.79 ea
Item Number 924581-5
Scanner Description Shrink End Cap,0.39in Id,Black,
Inventory Status Drop Ship Item
Weight 0.52 lb
Brand RAYCHEM

Technical Specifications

Brand
RAYCHEM
Pack Quantity
50
Color Family
Black
Resists
Hydraulic Fluids
Features
Meet/Exceed Industrial and Military Standards
Shrink Temperature
203°F
Flame Retardant
No
Shrink Tubing Adhesive Lined
No
Heat Shrink Tubing Shrink Ratio
2.5:1 Shrink Ratio
Shrink Tubing Inside Diameter Before Shrinking
0.390 in.
Inside Diameter After Shrinking
0.150 in.
Shrink Tubing Type
Heat Shrink End Cap
Inside Diameter Before Shrinking
0.390 in.
Shrink Tubing Usable Temperature Range
-67° to 275°F
Inside Diameter Expanded Pre-Shrink
0.39 in.
Standards
ANSI C119.1
Item
Heat Shrink End Cap
Temperature Range
-67 deg. F to 275 deg. F
Length
1 in.
Tube Material
Polyolefin
Maximum Voltage
1000 V
Use Shrink Tubing With Wire Size
8 to 2 AWG
Mfr. Part Number
ESC-1/A (B50)
Wall Thickness After Shrinking
0.090 in.
Minimum Shrink Temperature
203°F
Wall Type
Heavy Wall

Product Description

These heat-shrink end caps are designed to shrink and compress a hot-melt adhesive on the cable jacket, forming a secure environmental seal. Each fits easily over the cable end and shrinks

  • in seconds, leaving a compact, rugged end seal.
Item Barcode
9245815
