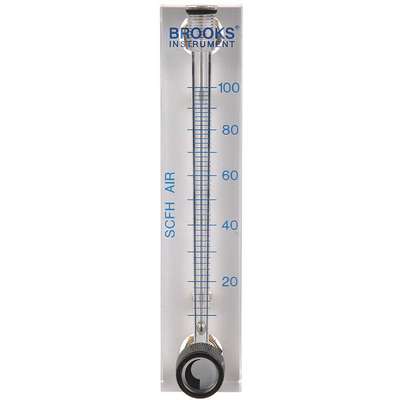

10 to 100 scfh Variable Area Mechanical Flowmeter

10 to 100 scfh Variable Area Mechanical Flowmeter

#924562-4 | Pkg Qty: 1

$92.40 pkg | $92.40 ea
Item Number 924562-4
Scanner Description Meter,Air,10-100 Scfh
Inventory Status Drop Ship Item
Weight 0.65 lb
Brand BROOKS

Technical Specifications

Application
For Measuring Liquid or Gas Flows in Air Sampling Equipment, Chromatography Systems, Desalinization Equipment, Gas Analyzers, Medical Systems, Photo Equipment, Water Treatment and Distribution and in Aquaculture System
Includes
Valves
Brand
BROOKS
Insert
10-32 Threaded Brass
Center-Center Fitting Size
5-1/2
Item
Mechanical Flowmeter
Center-Center Insert Size
3-1/2
Maximum Pressure
150 psi
Connection Size
1/8 in.
Maximum Pressure (PSI)
100
Connection Type
FNPT
Maximum Temperature (F)
150
Depth
1-1/8
Maximum Viscosity
79.8 SSU
Fitting
Brass
Mfr. Part Number
2520A4A34BVBN
Flow Material
Air
O-Ring
Nitrile
Flow Range
10 to 100 scfh
Pack Quantity
1
Flowmeter Group
Mechanical Flowmeter
Type
Variable Area
For Pipe Size
1/8 in. to 1 in.
Wetted Materials
Clear Acrylic, Brass, Buna, Stainless Steel
Height
6-1/2 in.
Width
1-3/8 in.
Housing Material
Acrylic

Product Description

Featuring an easy-to-read float with English or metric scales, this BROOKS Flo-Rite™ mechanical flowmeter has a durable, 1-pc. clear acrylic housing. Model is integral-valved to permit individual flow control and is designed to allow easy assembly and disassembly for maintenance. Flowmeter has threaded brass inserts for quick installation.

Item Barcode
9245624
  Name Item Description
Grainger Dropship Grainger Dropship 5P345 Meter,Air,10- 100 SCFH
UNSPSC CODES UNSPSC CODES 41112501
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Meter,Air,10- 100 SCFH
