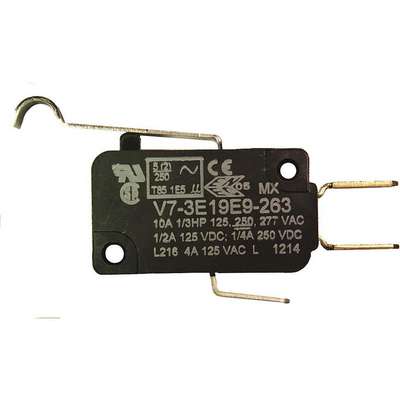

10A @ 240V Lever, Simulated Roller Miniature Snap Action Switch; Series V7

Item Number 924489-3
Scanner Description Mini Swch,10A,Spdt,Simultd
Weight 0.05 lb
Brand HONEYWELL
Pkg Qty: 1
$3.21 pkg | $3.21 ea

Add to List

Technical Specifications

AC Contact Rating - Snap Action Switch 10A @ 240V   Lever Actuator Length - Snap Action Switch 0.97 in.
Actuator Length 0.97 in.   Max. Pretravel 0.101 in.
Actuator Type - Snap Action Switch Lever, Simulated Roller   Mfg Part Number V7-3E19E9-263
Amperage - Electrical Supplies 10   Mounting Dimension 0.41 x 0.87 in. Centers
Amps 10   Mounting Dimension - Snap Action Switch 0.87 in. Centers
Basic Actuator Type - Snap Action Switch Lever   Number of Circuits - Snap Action Switch 1
Brand HONEYWELL   Operating Force 33 gf max.
Contact Form SPDT   Operating Force (Oz.) 33 gf max.
Contact Form- Switches SPDT   Operating Temp Range -40° to 180°F
Contact Type SPDT   Operating Temp. Range (F) -40 to 180
Current Rating 10A   Over Travel 0.075 in.
DC Contact Rating - Snap Action Switch 0.5A @ 125V   Pack Quantity 1
Depth 0.4 in.   Release Force 2 gf max.
Depth - Snap Action Switch 0.40 in.   Release Force (Oz.) 2 gf m.
Differential Travel 0.03 in.   Series V7
Differential Travel (In.) 0.03   Snap Action Switch Type Miniature Snap Action Switch
Electrical Connection - Snap Action Switch Quick Connect   Standards UL, CSA, ENEC
Height 0.63 in.   Type Premium V-Basic
Height - Snap Action Switch 0.63 in.   Type of Actuator Simulated Roller Lever
Housing Material PCT Polyester Thermoplastic   Voltage (V) 250VAC
Item Miniature Snap Action Switch   Voltage Rating 250VAC
Length 1.14 in.   Watertight - Snap Action Switch No
Length (In.) 1.14   Width - Snap Action Switch 1.14 in.

Product Description

  • Shipping Weight 0.05 lbs.
Country of Origin Mexico Country of Origin is subject to change.

Documents
Item Barcode
9244893
  Name Item Description
Grainger Dropship Grainger Dropship 24A291
UNSPSC CODES UNSPSC CODES 39121505
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Mini Swch, 10A,SPDT,
