DAYTON

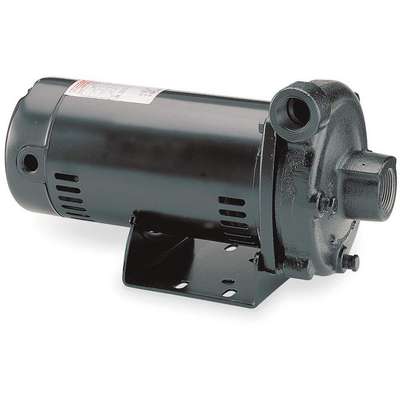

120/240 VAC Open Dripproof Straight Center Discharge Pump, 1-Phase, 1-1/4" NPT Inlet Size
Hover over image to magnify
#924484-2 | Pkg Qty: 1
$947.60 pkg | $947.60 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps
19.9/9.95 A
Maximum Fluid Viscosity
1 cP
Bearing Type
Ball
Maximum GPM @ Head
70 @ 20 ft.
Best Efficiency GPM @ Head
45 @ 85 ft.
Maximum Head
118 ft.
Best Efficiency Range GPM @ Head
30 to 56 gpm @ 105 to 62 ft.
Maximum Liquid Temperature
225°F
Brand
DAYTON
Maximum Pressure
125 psi
Discharge Pressure
Straight Center Discharge Pump
Maximum Specific Gravity
1
Drain Plug
Easily Accessible
Mfr. Part Number
4RU75
Frame
48Y
Mfr. Warranty Length
1 yr.
GPM of Water @ 100 Ft. of Head
35
Minimum GPM @ Head
23 gpm @ 110 ft.
GPM of Water @ 110 Ft. of Head
23
Motor Enclosure
ODP
GPM of Water @ 20 Ft. of Head
70
Motor RPM
3450
GPM of Water @ 30 Ft. of Head
68
NEMA/IEC Frame
48Y
GPM of Water @ 40 Ft. of Head
66
Number of Port Positions
4
GPM of Water @ 50 Ft. of Head
61
Outlet
1 in. NPT
GPM of Water @ 60 Ft. of Head
57
Outlet Size
1 in. NPT
GPM of Water @ 70 Ft. of Head
52
Package Quantity
1
GPM of Water @ 80 Ft. of Head
48
Phase
1
GPM of Water @ 90 Ft. of Head
41
Port Rotation
4 Positions
Height
8-5/8 in.
Seal Application
Water
Horsepower
1-1/2
Seal Material
Buna-N Elastomers, Carbon/Ceramic Face, 316 Stainless Steel Metal Parts
Housing Material
Cast Iron
Seal Type
Type 21
Hz
60
Service Factor
1.1
Impeller Material
Brass
Shaft Material
Stainless Steel
Impeller Type
Closed
Shipping Weight
41 lb.
Inlet
1-1/4 in. NPT
Type
High Head
Item
Straight Center Discharge Pump
Voltage
120/240 VAC
Length
13-3/4 in.
Wetted Materials
Stainless Steel, Carbon, Cast Iron, Silicon Brass, Ceramic, Buna-N
Liquid Compatibility
Nonflammable, Non Abrasive
Width
7-13/16 in.
Maximum Case Pressure
100 psi
General
Best Efficiency Flow
45 gpm
Intake Type
NPT
Best Efficiency Head
62 to 105 ft
Intake and Discharge Size
1 1/4 in , 1 in
Compatible Discharge Pipe Size
1 in
Maximum Feet of Head
118 ft
Compatible Intake Pipe Size
1 1/4 in
Maximum Media Temperature
225 Degrees F
Discharge Rotation
90 Degrees Increments
Motor Enclosure Type
ODP
Discharge Type
NPT
Motor Frame Designation
48Y
Flow Rate @ 100 ft of Head (Maximum)
35 gpm
Nameplate Voltage
115/230V AC
Flow Rate @ 20 ft of Head (Maximum)
70 gpm
Nominal Voltage
115/230V AC
Flow Rate @ 40 ft of Head (Maximum)
66 gpm
Priming
Manual
Flow Rate @ 60 ft of Head (Maximum)
57 gpm
Pump Housing Material
Cast Iron
Flow Rate @ 80 ft of Head (Maximum)
48 gpm
Shut Off Pressure (Maximum)
125 psi
For Use With
Nonflammable and Nonabrasive Liquids
Specific Gravity (Maximum)
1
For Use With Potable Systems
No
Suction Lift (Maximum)
25 ft
Impeller Design
Closed
Wetted Material
Buna-N, Carbon, Cast Iron, Ceramic, Silicon Brass, Stainless Steel
Product Description
Features replaceable case ring and easy-access housing drain plug. Does not have overload protection and requires a pump control box, sold separately. Replacement seals are also sold separately.
