SPEEDAIRE

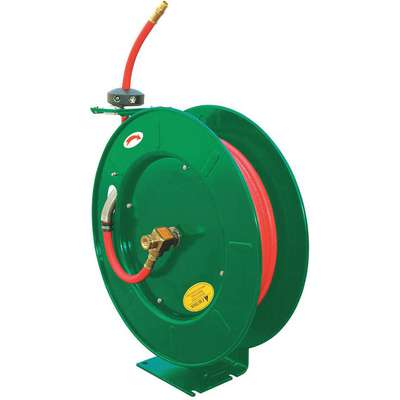

Spring Return Hose Reel: 50 ft (1/4 in I.D.), 1/4 in MNPT, 300 psi Max Op Pressure, Brass, Green
Hover over image to magnify
#924467-9 | Pkg Qty: 1
$238.05 pkg | $238.05 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bearings
Permanently Lubricated
Item
Spring Return Hose Reel
Brand
SPEEDAIRE
Maximum Pressure
300 psi
Drive Type
Spring Return
Maximum Temperature
210 deg. F
Enclosed
No
Mfr. Part Number
6WA69
Enclosed Reel
No
Mounting Location Type
Bench, Floor, Truck, Wall
Finish
Powder Coated
Number of Guide Arms
Single Arm
Hose Capacity
50 ft. (1/4 in I.D.)
Overall Height
22-1/2 in.
Hose Ends
3/8 in. (F)NPT
Overall Length
20-5/8 in.
Hose Included
Yes
Overall Width
8-7/16 in.
Hose Inside Diameter
1/4 in.
Package Quantity
1
Hose Length
50 ft.
Reel Inlet
3/8 in. (F)NPT
Hose Material
Rubber
Reel Material
Steel
Hose Reel Group
Spring Return Hose Reels
Seal Type
Viton®
Hose Reel Media
Air, Water
Shipping Weight
52.8 lb.
Hose Reel Rating
Heavy Duty
Speed Limited Retraction
No
Housing Material
Steel
Type
Heavy Duty Industrial, Spring Return
Includes Hose
Yes
General
Base Motion Type
Stationary
Includes
Hose
Bearing Construction
Permanently Lubricated
Includes Hose Stop
Yes
Corrosion-Resistant
Yes
Media - Hose Reels
Air, Water
Drive Type - Hose Reels
Spring Return
Mount Base Height
7 in
Finish - Hose Reels
Powder Coated
Mount Base Width
6 3/32 in
Fitting Gender
Male x Male
Mount Hole Diameter
1/2 in
Hose Cover Material
Rubber
Mounting Hole Center to Center Height
6 in
Hose End Configuration
1/4 in MNPT
Mounting Hole Center to Center Width
4 in
Hose Fitting A Material
Brass
Number of Mount Holes
4
Hose Fitting A Type
NPT
Reel Finish
Powder Coated
Hose Fitting B Type
NPT
Swivel Inlet Gender
Female
Hose Inside Dia.
1/4 in
Swivel Inlet Thread Size
3/8 in
Hose Outlet
1/4 in (M)NPT
Swivel Inlet Type
NPT
Hose Outside Dia.
1/2 in
Swivel Material
Brass
Hose Reel Primary Application
Air, Water
Swivel Outlet Gender
Female
Hose Reel Product Group
Spring Return Hose Reel
Swivel Outlet Thread Size
1/4 in
Hose Reel Type
Wall Mount Hose Reel
Swivel Outlet Type
NPT
Hose Tube Material
Rubber
Product Description
Speedaire® Positive latching mechanism automatically locks the hose at the desired length. Safety lock prevents hose from moving in either direction once the latch has been engaged. Include multiposition ratchet and lock. Heavy-Duty Industrial Reels
- Hose included Spring-driven hose reels have high-grade steel base and arms. Mount to floor, wall, ceiling, workbench, or inside truck.
