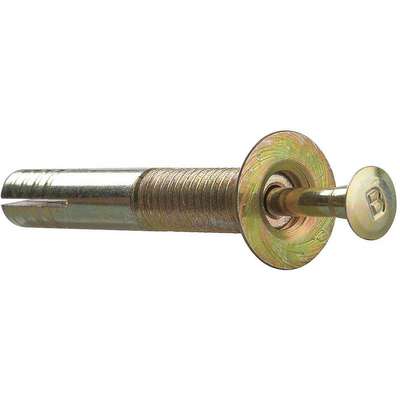

Dome-Head Hammer Drive Pin Anchor, 2-3/4"L x 5/16" Dia., 10 PK

Hover over image to magnify
Securityanchor,Pin Drive,5/
PI_Asset_970648
PI_Asset_970649
PI_Asset_970650
PI_Asset_970651
Securityanchor,Pin Drive,5/
PI_Asset_970648
PI_Asset_970649
PI_Asset_970650
PI_Asset_970651

#924419-5 | Pkg Qty: 10

$33.00 pkg | $3.30 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Anchor Body Finish
Zinc Plated
Mfr. Part Number
GCPFS56234
Anchor Diameter
5/16 in.
Minimum Embedment
1-1/4 in.
Anchor Head Style
Dome
Package Quantity
10
Anchor Length
2-3/4 in.
Pin Anchor Type
Hammer Drive Pin Anchor
Anchor Material
Carbon Steel
Pin Material
Hardened Steel
Anchor Type
Pin Drive Expansion
Product Size
5/16 x 2-3/4 in.
Brand
APPROVED SUPPLIER
Shank Length
2-3/4 in.
Item
Hammer Drive Pin Anchor
Shipping Weight
.68 lb.
Maximum Fixture Thickness
1-1/4 in.
Ultimate Pullout
1400 lb.
Maximum Work Thickness
1-1/4 in.
Ultimate Shear
3000 lb.
Meets/Exceeds
I.C.B.O., City of Los Angeles Approval, G.S.A. FF-S-325 Group V Type 2 Class 2, A.N.S.I. A58.1, A.S.T.M. B-633,
General
Box Count
10 per pack
Ultimate Pullout (Lb.)
1400
Includes
Body, Reversable Nut, Drive Pin
Ultimate Shear (Lb.)
3000

Product Description

Hammer-drive anchors and pins are engineered to set flush in recessed washers to help prevent tampering and removal. They are also designed to resist vibration, and will work in all poured concrete and brick materials. Unlike other security type anchors, they do not require special tools or welding to sit securely. The nut features a reversible design, making it compatible with flat head and round head applications. Use to secure prison furniture, burglar bars, security door frames, motion detectors, fencing, lock boxes, money meters, vending machines, benches, light fixtures, playground equipment, thresholds, stadium seating, cash machines, and mailboxes.
