Skate Wheel Conveyor, Flexible, Powder Coated, Structural Steel, Between Frame Width 18

Skate Wheel Conveyor, Flexible, Powder Coated, Structural Steel, Between Frame Width 18

#924344-9 | Pkg Qty: 1

$990.00 pkg | $990.00 ea
Item Number 924344-9
Scanner Description Skatewhl Cnveyr,26-3/16Inx3
Inventory Status Drop Ship Item
Weight 165 lb
Brand APPROVED SUPPLIER

Technical Specifications

Axle Spacing
Up to 5 in.
Legs
4
Bearings
Nolon Ball
Load Capacity @ 5 ft. Centers
200 lb./ft.
Between Frame Width
18 in.
Maximum Load Capacity
200 lb./ft.
Brand
APPROVED SUPPLIER
Mfr. Part Number
13D467
Conveyor Frame Type
Flexible
Overall Length
12 ft.
Duty Rating
Medium-Duty
Overall Width
20-3/16 in.
Expandable
Yes
Pack Quantity
1
Frame Finish
Powder Coated
Section Description
Flexible, Expandable
Frame Material
Steel
Skate Wheel Material
Plastic
Frame Shape
Flexible
Wheel Diameter
1-15/16 in.
Height Adjustment
28-1/2 in. to 41-1/2 in.
Wheels per Axle
7
Item
Skate Wheel Conveyor
Width
18

Product Description

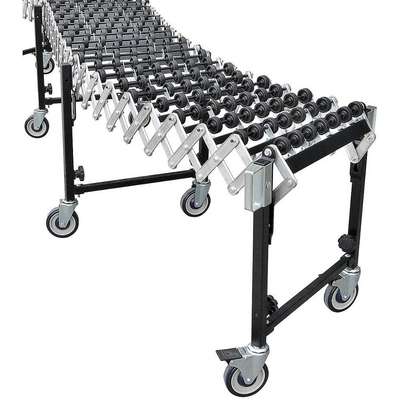

These medium-duty skate wheel conveyors with extendable, flexible frames are sturdier, have a higher weight capacity, and can handle higher volumes of conveyed items than light-duty skate wheel conveyors with extendable, flexible frames. They have accordion-style frames that can stretch, curve, and contract to change the shape and length of the conveyor. The conveyors collapse for compact storage and are ideal for loading and unloading trailers, creating temporary assembly lines, and adding length to an existing conveyor. Skate wheels on the surface of each conveyor allow loads with firm, flat bottoms to roll along the conveyor from one place to another, reducing the effort it takes to move the loads. The conveyors' legs support the conveyor, and their height can be adjusted to change the height or slope of the conveyor. The legs have swivel casters that allow the conveyor to be rolled into position.

Skate wheel conveyors consist of small skate wheels mounted on a series of axles attached to rigid or flexible frames. The wheels let boxes, totes, and other loads with firm, flat bottoms roll along the conveyor from one place to another, reducing the effort it takes to move the loads. These unpowered (gravity-flow) conveyors use a downward slope or a manual push to move loads down the line. Compared to roller conveyors, skate wheel conveyors need less force or slope to move loads and are better at maintaining the orientation of loads as they move around curves. The conveyors' wheel density impacts the size of the loads that can be conveyed on them. The smallest item on the conveyors should be supported by at least five wheels on three axles at all times. Gate kits and transition sections can be used to customize the conveyors. Skate wheel conveyors can be reconfigured for temporary applications and are often used in warehousing, manufacturing, package handing, and distribution tasks.
