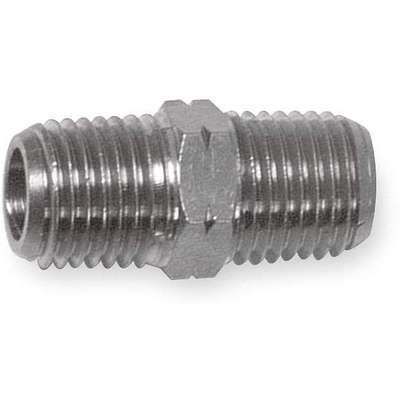

Hex Nipple: Nickel-Plated Brass, 1/4 in x 1/4 in Fitting Pipe Size, Male NPT x Male NPT
Hover over image to magnify
#924337-9 | Pkg Qty: 1
$2.47 pkg
| $2.47 ea
Technical Specifications
Key Specifications
Body Material
Nickel Plated Brass
Maximum Pressure
250 psi
Brand
ALPHA FITTINGS
Mfr. Part Number
82200N-04
Connection Type
MNPT
Package Quantity
1
Hex Size
5/8 in.
Pipe Size
1/4 in.
Item
Hex Nipple
Shipping Weight
.05 lb.
Length
1-3/8 in.
Temperature Range (Deg. F)
Up to 140 deg. F
General
Class/Pressure
250 psi
Fitting Side B Type
NPT
Finish/Coating
Nickel-Plated
Fitting Thread Size A
1/4 in -18
Fitting Pipe Size
1/4 in x 1/4 in
Fitting Thread Size B
1/4 in -18
Fitting Side A Gender
Male
Includes Pre-Applied Thread Sealant
No
Fitting Side A Nominal Pipe Size
1/4 in
Includes Seal
No
Fitting Side A Outside Diameter
1/4 in
Low Lead Compliance Level
Not Compliant
Fitting Side A Pipe Threading
18
Material Grade
CA360
Fitting Side A Type
NPT
Max. Steam Pressure
250 psi
Fitting Side B Gender
Male
Pipe Fitting Material & Finish
Nickel-Plated Brass
Fitting Side B Nominal Pipe Size
1/4 in
Pressure Level
Low Pressure (100-299 psi)
Fitting Side B Outside Diameter
1/4 in
Standards
ASSE
Fitting Side B Pipe Threading
18
Threading
NPT
Product Description
Nickel-Plated Brass Fittings
- Max. pressure: 250 psi temperature range: 0° to 140°F
- These lower-cost alternatives to stainless steel fittings are ideal for applications where standard yellow brass can't be used. For use with water, oils, and compressed air fluids commonly utilized in hydraulic and pneumatic plant applications.
- Meet ASSE standards.
Item Barcode
Hex Nipple,Nickel-Plated Brass,
| Name | Item | Description | |
|---|---|---|---|
|
Grainger Dropship | 1CPC9 | Hex Nipple, Nickel- |
|
UNSPSC CODES | 40173301 | |
|
VMRS (ATA) CODES | 053-008-004 | Hex Nipple, Nickel- |
