SPEEDAIRE

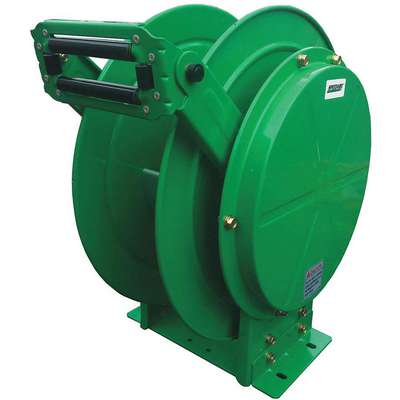

Spring Return Hose Reel: 100 ft (3/8 in I.D.), 5,000 psi Max Op Pressure, Steel, Green

Hover over image to magnify
Hose Reel,3/8",100 Ft L,5000
PI_Asset_1761433
Hose Reel,3/8",100 Ft L,5000
PI_Asset_1761433

#924334-7 | Pkg Qty: 1

Pricing is subject to change without notice
Alternate products displayed may not be identical in style or function to original selection.
Alternate Products
Reel,Pressure Washer
$1,052.43 pkg | $1,052.43 ea
Item: 913207-3
Pkg Qty: 1

Technical Specifications

Key Specifications
Bearings
Permanently Lubricated
Item
Spring Return Hose Reel
Brand
SPEEDAIRE
Latch
Locking
Drive Type
Spring Return
Maximum Pressure
5000 psi
Enclosed
No
Maximum Temperature
400 deg. F
Enclosed Reel
No
Mfr. Part Number
45UZ54
Finish
Powder Coated
Mounting Location Type
Bench, Ceiling, Floor, Truck, Wall
Hose Capacity
100 ft. (3/8 in I.D.)
Number of Guide Arms
Double Arm
Hose Ends
3/8 in. (M)NPT
Overall Height
21-17/64 in.
Hose Included
No
Overall Length
19-11/16 in.
Hose Inside Diameter
3/8 in.
Overall Width
12-7/16 in.
Hose Length
100 ft.
Package Quantity
1
Hose Material
PVC
Pedestal Type
Dual Pedestal
Hose Reel Group
Spring Return Hose Reels
Reel Inlet
1/2 in. (F)NPT
Hose Reel Media
Air, Water
Reel Material
Steel
Hose Reel Rating
Heavy Duty
Seal Type
Nitrile
Housing Material
Steel
Shipping Weight
66.7 lb.
Includes Hose
No
Speed Limited Retraction
No
General
Base Motion Type
Stationary
Mount Base Width
12 1/2 in
Bearing Construction
Permanently Lubricated
Mount Hole Diameter
5/16 in, 7/16 in
Corrosion-Resistant
Yes
Mounting Hole Center to Center Height
2 7/8 in, 3 3/4 in
Drive Type - Hose Reels
Spring Return
Mounting Hole Center to Center Width
2 3/8 in, 11 in
Fasteners Included
No
Number of Mount Holes
8
Features
Heavy Duty Bracing
Reel Finish
Powder Coated
Finish - Hose Reels
Powder Coated
Swivel Inlet Gender
Female
For Dual Hose
No
Swivel Inlet Size
1/2 in
Hose Inside Dia.
3/8 in
Swivel Inlet Thread Size
1/2 in - 14
Hose Reel Primary Application
Pressure Washer
Swivel Inlet Type
NPT
Hose Reel Product Group
Spring Return Hose Reel
Swivel Material
Steel
Hose Reel Type
Free Standing Hose Reel, Hose Reel Cabinet, Hose Reel Cart, Wall Mount Hose Reel
Swivel Outlet Gender
Male
Includes Leader Hose
No
Swivel Outlet Size
3/8 in
Media - Hose Reels
Air, Water
Swivel Outlet Thread Size
3/8 in - 18
Mount Base Height
7 7/8 in
Swivel Outlet Type
NPT

Product Description

Pressure-washer spring-return hose reels have a high-pressure water swivel to handle a broad range of temperatures and up to 5000 psi. Steel bodies are powder-coated for corrosion resistance. These pressure-washer hose reels hold 50- to 425-ft. water hose for use in agricultural/marine, equipment cleaning, and pressure-washing applications.
