DAYTON

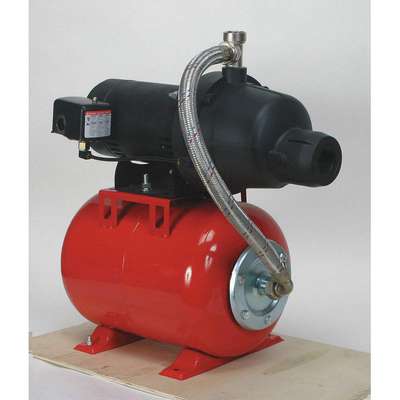

3/4 HP, Shallow Well Jet Pump System, 10.8/5.5 Amps, 5.6 gpm Flow Rate at 10 Ft. Lift at 40 PSI

Hover over image to magnify
Shallow Well Jet Pump, Plastic,
Shallow Well Jet Pump, Plastic,

#924303 | Pkg Qty: 1

$942.95 pkg | $942.95 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Amps
10.8/5.5 A
Motor Enclosure
ODP
Brand
DAYTON
Motor Type
Capacitor Start
GPM of Water @ 10 Ft @ 30, 50 PSI
10.5/2.3
NPT Outlet
1
GPM of Water @ 15 Ft @ 30, 50 PSI
8.8 2.0
Outlet
1 in. NPT
GPM of Water @ 20 Ft @ 30, 50 PSI
6.6/1.6
Pack Quantity
1
GPM of Water @ 5 Ft @ 30, 50 PSI
12.5 2.6
Pressure Switch Setting
30 to 50 psi
Horsepower
3/4
Seal Type
Mechanical
Inlet
1-1/4 in. NPT
Shipping Weight
50 lb.
Item
Shallow Well Jet Pump System
Shut-Off
63 psi
Material of Construction
Thermoplastic
Suction Pipe Size
1-1/4 in.
Maximum Inlet Pressure
75
Tank (Gal.)
6
Mfr. Part Number
4HFA1
Voltage
115 - 230
General
Discharge Standard
NPT
Inlet Standard
NPT
Flow Rate @ 10 Ft. Lift @ 30 PSI
10.5 gpm
Max. Suction Lift
25 ft
Flow Rate @ 10 Ft. Lift @ 40 PSI
5.6 gpm
Nominal Voltage
110V AC, 230V AC
Flow Rate @ 10 Ft. Lift @ 50 PSI
2.3 gpm
Rated Voltage
115/230V AC
HP
3/4 hp
Shut Off Pressure
63 psi
Includes
Pump and Tank
Tank Bladder Pressure
28 psi
Inlet Dia.
1 1/4 in

Product Description

Shallow-well jet pump systems eliminate the need to connect to a municipal water source and come with precharged pressure tanks that allow water to flow consistently at a desired pressure. They supply water from wells up to 25-ft. deep and are mounted above ground for maintenance and repair compared to submersible well pumps that are installed in the well and need to be removed from the well for inspection. Pumps are not subject to pump twisting found in submersible pumps that causes them to strike against and damage the sides of the well casing. They are connected to an ejector, pressure tank, and control panel to automatically supply water as needed.
