FRANKLIN

Pump Control Panel, 230 VAC, Compatible Pump Type Sewage, Sump, Well, No Switch Included

Hover over image to magnify

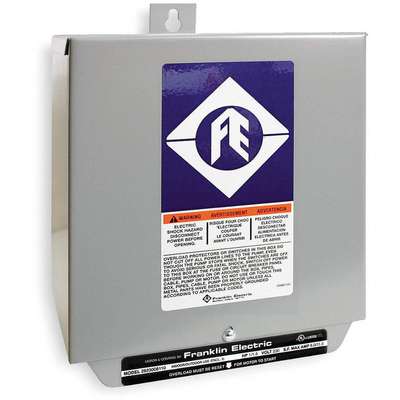

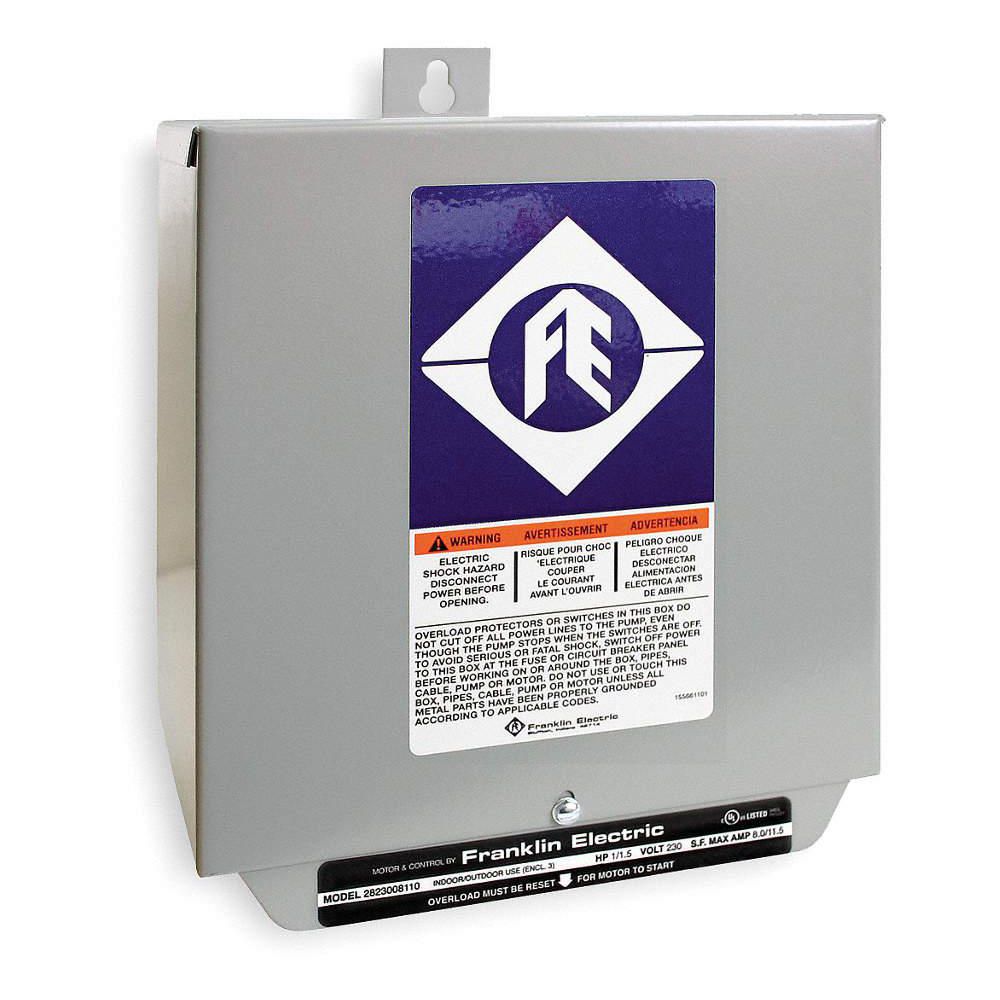

Control Box,2HP,230V,1Phase
Control Box,2HP,230V,1Phase

#924301-8 | Pkg Qty: 1

$534.29 pkg | $534.29 ea

Technical Specifications

Key Specifications
Accepts
Up to #2 AWG Wire
Motor/Pump HP
2
Amps
13.2 A
Mounting
Pole or Wall
Brand
FRANKLIN
Pack Quantity
1
Control Box Type
Deluxe CSCR
Phase
1
Depth
5-13/16 in.
Shipping Weight
7 lb.
Enclosure Type
3R
Type
Submersible
Item
Motor/Pump Control Box
Voltage
230
Mfr. Part Number
558852
General
Compatible Pump Type
Submersible Deep-Well
Phase - Pumps
1
Location
Indoor/Outdoor
Rated Voltage
230V AC
Nominal Voltage
220V AC
Switch Actuation
No Switch Included
Number of Pumps Controlled
1

Product Description

These submersible deep-well pump and motor control boxes are wall-mounted boxes with relays, switches, and breakers for controlling the start and stop cycling of submersible deep-well pumps and attached alarms. They use wiring to connect to the pump and allow for automatic or manual pump operation depending on the application. Control boxes are recommended for water systems that utilize a pressure switch and safety relief valve. Capacitor-start, induction-run (CSIR) control boxes are quick-disconnect relay-type boxes with a start capacitor, but no run capacitor. Capacitor-start, capacitor-run (CSCR) control boxes have both a start capacitor and a run capacitor for greater electrical efficiency and long pump life. Deluxe CSCR models come with a magnetic contactor.

Compliance & Restrictions

California Proposition 65 Icon
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
9243018
Control Box,2HP,230V,1Phase
  Name Item Description
Grainger Dropship Grainger Dropship 1LZW4 Control Box, 2HP,230V,
UNSPSC CODES UNSPSC CODES 40151701
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Control Box, 2HP,230V,
