BELIMO

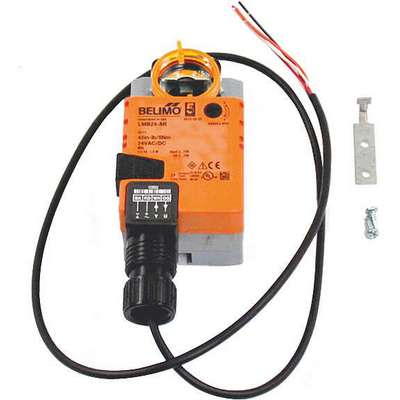

Belimo 24 VAC/DC Proportional Non-Spring Return Damper Actuator, -22° to 122°F, 45"-lb., 95 sec., Includ

Hover over image to magnify
Non-Spring Return Damper
Non-Spring Return Damper

#924267-2 | Pkg Qty: 1

$230.29 pkg | $230.29 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
BELIMO
Mounting
Direct Mount
Depth
2-11/32 in.
Package Quantity
1
Direction
CW or CCW
Shipping Weight
1.2 lb.
Height
6-9/16 in.
Torque
45 in.-lb.
Item
Non-Spring Return Damper Actuator
Voltage
24 VAC/DC
Mfr. Part Number
LMB24-SR
Width
2-19/32 in.
General
Ambient Temp. Range
-22 Degrees to 122 Degrees F
Spring Return
No
Includes
Mounting Hardware
Stroke Deg.
0 to 95
Motor Direction
CW or CCW
Timing
95 sec
Signal Type
Proportional

Product Description

For the proportional modulation of dampers in HVAC systems, this BELIMO non-spring return damper actuator is mounted directly to a damper shaft from 1/4” up to 5/8” diameter using the included clamp. Model operates in response to a 2 to 10VDC, or with the addition of a 500 resistor (not included), a 4 to 20mA control input from an electronic controller or positioner. A 2 to 10VDC feedback signal is provided for position indication or master-slave applications. Actuator uses a sensorless brushless DC motor that’s controlled by an Application Specific Integrated Circuit (ASIC). The ASIC can monitor and control the actuator’s rotation and it provides a digital rotation sensing (DRS) function to prevent damage to the actuator in a stall condition.
