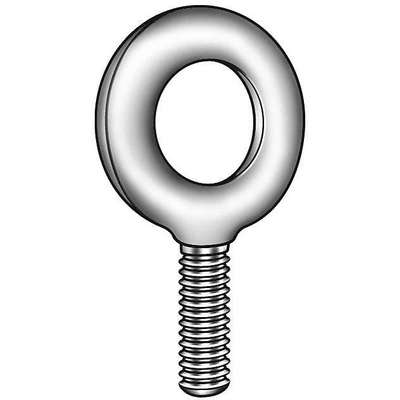

Eyebolt, 1/4-20,3/4In, Lift w/o Shoulder

Zoom Icon

#924266-5 | Pkg Qty: 1

$3.75 pkg | $3.75 ea
Item Number 924266-5
Scanner Description Eyebolt,1/4-20,3/4In,Lift w/o
Inventory Status Drop Ship Item
Weight 0.05 lb
Brand APPROVED SUPPLIER

Technical Specifications

Basic Material
Steel
Pack Quantity
1
Brand
APPROVED SUPPLIER
Shank Diameter - Machined Rod Ends
1/4 in.
Eye Bolt Application
For Lifting
Shank Length
1 in.
Eyebolt Type
Lift without Shoulder
System of Measurement
Fractional
Finish
Plain
Thread Length
1 in.
Inside Diameter
3/4 in.
Thread Size
1/4"-20
Item
Eye Bolt
Thread Type
Coarse
Material
Steel
Type
Lifting Without Shoulder
Mfg Part Number
K2001
Working Load Limit (lb.)
500 lb.
Outside Diameter
1-3/16 in.

Product Description

Machinery Eyebolts

  • Drop-forged carbon steel is heat-treated after forging. Angular lifts will significantly lower working load limits and should be avoided. Loads are based on a safety factor of 5 to 1.
  • Note: Stainless steel also available, search for "stainless steel machinery eyebolts".
Item Barcode
9242665
  Name Item Description
Grainger Dropship Grainger Dropship 3XTE5 Eyebolt,1/4- 20,3/4In,
UNSPSC CODES UNSPSC CODES 31161610
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009
